 X-Threads Garage?
RocketFoot Offline
Senior Member
****
Posts: 338
Joined: Jul 2010
Post: #1
X-Threads Garage?
I would really love for someone to create a tutorial for an X-Threads Garage!  This would be similar to a gallery but each member would have to be able to maintain their own page by uploading descriptions and photos of their vehicle.  Here is an example of a garage mod that I have installed on my IPB board.

http://www.bigmacktrucks.com/index.php?s...http://www.bigmacktrucks.com/index.php?s=ac9dc8111d4516a4aa42941448eeee50&

I know this would probably be a huge project, but I'd love to have it and I just don't have the skill level to do it my self...Oops
09-07-2010 10:58 PM
Find all posts by this user Quote this message in a reply
RateU Offline
Administrator
*******
Posts: 2,350
Joined: Mar 2010
Post: #2
RE: X-Threads Garage?
Requirement: XThreads
Update: 23 Oct 2011
Maybe you can modify this example:

Edit/create a forum. XThreads settings:
  1. Template Prefix: gf_ (Ooops! It is not Guardian Force in FF VIII though Biggrin)
  2. Show first post on every showthread page: Yes
  3. Enable XThreads' Inline Forum Search: Yes
  4. Allow Blank Post Message: Yes
  5. Hide Forum: Yes
    We need to put this forum url manually in our templates (e.g: header template).
  6. Custom WOL Text:
    • Forum Display: Viewing Garage
    • New Thread: Submit A New Vehicle
    • New Reply: Commenting <a href="{1}">{2}</a> Vehicle
    • Show Thread: Viewing <a href="{1}">{2}</a> Vehicle


Custom Thread Fields Setting:

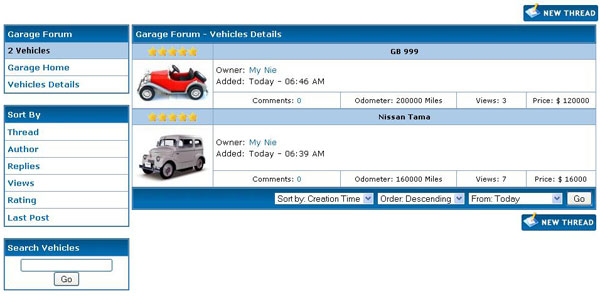

  1. Listbox for vehicles details layout:
    We will create two thread list layout. So, we need this to get the second layout. The only filtering fields here.
    Create a Custom Thread Fields with this settings:
    • Title: Browse Vehicle
    • Key: gfbv
    • Applicable Forums: 'select our garage forum'
    • Input Field Type: Listbox
    • Field Input Height: 1
    • Values List:

      Code:
      Browse Vehicle

    • Editable by / Required Field?: Everyone (required)
    • Display Order: 1
    • Allow Filtering: Yes
  2. File Input for Vehicle Image:
    Create a Custom Thread Fields with this settings:
    • Title: Vehicle Image
    • Key: gfvimg
    • Applicable Forums: 'select our garage forum'
    • Input Field Type: File
    • Valid File Extensions: gif|png|jpg|jpeg
      Modify it as our needs. It is the extensions of image that can be uploaded.
    • Maximum File Size: 102400
      Modify it as our needs. It is a maximum file size (in bytes) that can be uploaded.
    • Editable by / Required Field?: Everyone (required)
    • Display Order: 2
    • Only accept uploaded images: Yes
    • Image Thumbnail Generation: 80x60|120x90|160x120
      Modify it as our needs. Depends on what thumbnails dimension we want to display for the image.
  3. Textbox for Price:
    Create a Custom Thread Fields with this settings:
    • Title: Price
    • Key: gfprice
    • Applicable Forums: 'select our garage forum'
    • Field Input Width: 10
    • Editable by / Required Field?: Everyone
    • Display Order: 3
    • Blank Replacement Value : -
    • Display Format  :

      Code:
      $ <?=number_format({VALUE},2)?>

    • Text Mask Filter:

      Code:
      ^\d+(\.\d{2})?$

      Variable in template for displaying this field is: {$GLOBALS['threadfields']['gfprice']}.

  4. Textbox for Odometer:
    Create a Custom Thread Fields with this settings:
    • Title: Odometer
    • Key: gfodometer
    • Applicable Forums: 'select our garage forum'
    • Field Input Width: 20
    • Editable by / Required Field?: Everyone
    • Display Order: 4
    • Blank Replacement Value : -
    • Display Format  :

      Code:
      <?=number_format({VALUE})?> Miles

    • Text Mask Filter:

      Code:
      ^\d+$

      Variable in template for displaying this field is: {$GLOBALS['threadfields']['gfodometer']}.

  5. Listbox for vehicles color:
    Create a Custom Thread Fields with this settings:
    • Title: Color
    • Key: gfcolor
    • Applicable Forums: 'select our garage forum'
    • Input Field Type: Listbox
    • Field Input Height: 1
    • Values List:

      Code:
      Blue
      Black
      White
      Silver
      Custom

      Modify it as our needs.

    • Editable by / Required Field?: Everyone
    • Display Order: 5
      Variable in template for displaying this field is: {$GLOBALS['threadfields']['gfcolor']}.

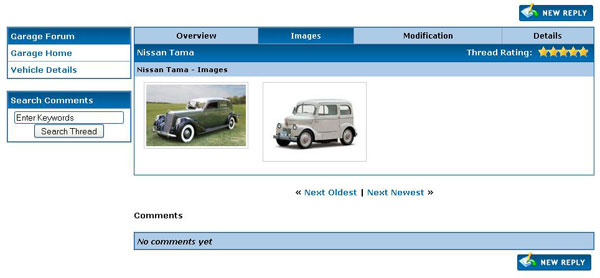

  6. File Input for additional vehicle image:
    Repeat this step as our needs. Use different key. e.g: gfvimg3, gfvimg4 and etc....
    Create a Custom Thread Fields with this settings:
    • Title: Vehicle Image #2
    • Key: gfvimg2
    • Applicable Forums: 'select our garage forum'
    • Input Field Type: File
    • Valid File Extensions: gif|png|jpg|jpeg
      Modify it as our needs. It is the extensions of image that can be uploaded.
    • Maximum File Size: 102400
      Modify it as our needs. It is a maximum file size (in bytes) that can be uploaded.
    • Editable by / Required Field?: Everyone
    • Only accept uploaded images: Yes
    • Image Thumbnail Generation: 160x120
      Modify it as our needs. Depends on what thumbnails dimension we want to display for the image.
    • Display Format :

      HTML Code
      <div class="float_left" style="margin: 5px; width: 180px; height: 140px;"><div align="center"><a href="{URL}" target="_blank"><img src="{URL}/thumb160x120" alt="Image 2" title="{$thread['subject']} Image 2" style="padding: 3px; border: 1px solid #CCCCCC;" /></a></div></div>

      Variable in template for displaying this field is: {$GLOBALS['threadfields']['gfvimg2']['value']}. If we repeat this step, we need to change the variable too, and place it in our gf_showthread template.
      In this example, we only use two additional vehicle images. So, the variable is: {$GLOBALS['threadfields']['gfvimg2']['value']} and {$GLOBALS['threadfields']['gfvimg3']['value']}.

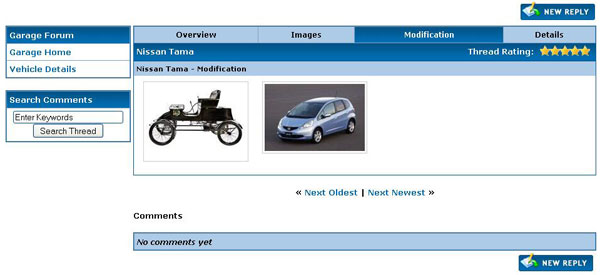

  7. File Input for modification image:
    Repeat this step as our needs. Use different key. e.g: gfmimg2, gfmimg3 and etc....
    Create a Custom Thread Fields with this settings:
    • Title: Modification Image #1
    • Key: gfmimg1
    • Applicable Forums: 'select our garage forum'
    • Input Field Type: File
    • Valid File Extensions: gif|png|jpg|jpeg
      Modify it as our needs. It is the extensions of image that can be uploaded.
    • Maximum File Size: 102400
      Modify it as our needs. It is a maximum file size (in bytes) that can be uploaded.
    • Editable by / Required Field?: Everyone
    • Only accept uploaded images: Yes
    • Image Thumbnail Generation: 160x120
      Modify it as our needs. Depends on what thumbnails dimension we want to display for the image.
    • Display Format :

      HTML Code
      <div class="float_left" style="margin: 5px; width: 180px; height: 140px;"><div align="center"><a href="{URL}" target="_blank"><img src="{URL}/thumb160x120" alt="Modification 1" title="{$thread['subject']} Modification 1" style="padding: 3px; border: 1px solid #CCCCCC;" /></a></div></div>

      Variable in template for displaying this field is: {$GLOBALS['threadfields']['gfmimg1']['value']}. If we repeat this step, we need to change the variable too, and place it in our gf_showthread template.
      In this example, we only use two modification images. So, the variable is: {$GLOBALS['threadfields']['gfmimg1']['value']} and {$GLOBALS['threadfields']['gfmimg2']['value']}.



Now, we need to create new templates in Global Template.
Admin CP -> Templates & Style -> Templates -> Global Templates:
  1. Template Name: gf_forumdisplay_nothreads

    HTML Code
    <div><strong><em>{$lang->nothreads}</em></strong></div>

  2. Template Name: gf_forumdisplay_searchforum_inline

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    <br class="clear" />
    <table border="0" cellspacing="{$GLOBALS['theme']['borderwidth']}" cellpadding="{$GLOBALS['theme']['tablespace']}" class="tborder">
    	<tr>
    		<td class="thead" colspan="{$colspan}">
    			<strong>Search Vehicles</strong>
    		</td>
    	</tr>
    	<tr>
    		<td class="trow1" align="center">
    			<form action="forumdisplay.php" method="get">
    				<input type="text" class="textbox" name="search" value="{$searchval}" /><br />{$gobutton}
    				<input type="hidden" name="fid" value="{$fid}" />
    				<input type="hidden" name="sortby" value="{$sortby}" />
    				<input type="hidden" name="order" value="{$sortordernow}" />
    				<input type="hidden" name="datecut" value="{$datecut}" />
    			</form>
    		</td>
    	</tr>
    </table>

  3. Template Name: gf_forumdisplay_sticky_sep

    HTML Code
    <div style="display: none;"></div>

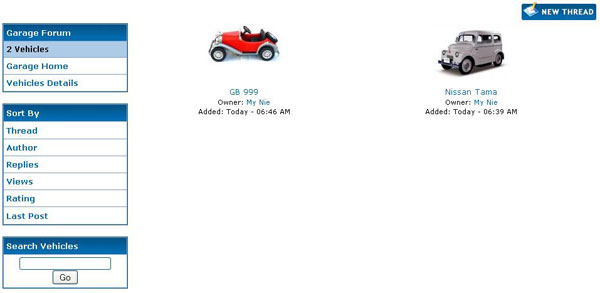

  4. Template Name: gf_forumdisplay_thread

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    <div class="float_left" style="width: 49%;{$filters_set['__all']['hiddencss']}">

    	<div style="text-align: center; width: 80%; margin: auto auto;">
    		<div style="height: 100px; vertical align: middle;">
    			<a href="{$threadurl}"><img src="<img src="<img src="{$GLOBALS['threadfields']['gfvimg']['thumbs']['120x90']['url']}" alt="View {$thread['subject']}" title="View {$thread['subject']}" /></a>
    		</div>
    		<span><a href="{$thread['threadlink']}">{$thread['subject']}</a>{$thread['multipage']}</span>
    		<div class="author smalltext">Owner: {$thread['profilelink']}</div>
    		<div class="author smalltext">Added: {$thread['threaddate']} &ndash; {$thread['threadtime']}</div>
    	</div>
    </div>
    <div style="{$filters_set['__all']['visiblecss']}">
    	<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="border: 0px;">
    		<tr>
    			{$rating}
    			<td class="tcat smalltext" align="center" colspan="{$colspan}">
    				<strong><a href="{$thread['threadlink']}" class="{$inline_edit_class} {$new_class}" id="tid_{$inline_edit_tid}">{$thread['subject']}</a></strong>
    			</td>
    			{$modbit}
    		</tr>
    		<tr>
    			<td class="{$bgcolor} smalltext" rowspan="2" width="1" align="center" valign="middle">
    				<a href="{$threadurl}"><img src="{$GLOBALS['threadfields']['gfvimg']['thumbs']['120x90']['url']}" alt="View {$thread['subject']}" title="View {$thread['subject']}" /></a>
    			</td>
    			<td class="{$bgcolor}" colspan="4">
    				<div>Owner: {$thread['profilelink']}</div>
    				<div>Added: {$thread['threaddate']} &ndash; {$thread['threadtime']}</div>
    			</td>
    		</tr>
    		<tr>
    			<td class="{$bgcolor} smalltext" align="center" height="25">
    				Comments: <a href="javascript:MyBB.whoPosted({$thread['tid']});">{$thread['replies']}</a>{$unapproved_posts}
    			</td>
    			<td class="{$bgcolor} smalltext" align="center" width="25%">
    				Odometer: {$GLOBALS['threadfields']['gfodometer']}
    			</td>
    			<td class="{$bgcolor} smalltext" align="center" width="15%">
    				Views: {$thread['views']}
    			</td>
    			<td class="{$bgcolor} smalltext" align="center" width="15%">
    				Price: {$GLOBALS['threadfields']['gfprice']}
    			</td>
    		</tr>
    	</table>
    </div>

  5. Template Name: gf_forumdisplay_threadlist

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    <div class="float_left">
    	{$multipage}
    </div>
    <div class="float_right">
    	{$newthread}
    </div>
    <table width="100%" border="0">
    	<tr>
    		<td width="200" valign="top">
    			<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder">
    				<tr>
    					<td class="thead" colspan="{$colspan}">
    						<strong>{$foruminfo['name']}</strong>
    					</td>
    				</tr>
    				<tr>
    					<td class="tcat">
    						<strong>{$GLOBALS['threadcount']} Vehicles</strong>
    					</td>
    					{$inlinemodcol}
    				</tr>
    				<tr>
    					<td class="trow1" colspan="{$colspan}">
    						<strong><a href="{$forumurl}">Garage Home</a></strong>
    					</td>
    				</tr>
    				<tr>
    					<td class="trow1" colspan="{$colspan}">
    						<strong><a href="{$forumurl_q}filtertf_gfbv=Browse Vehicle">Vehicles Details</a></strong>
    					</td>
    				</tr>
    			</table>
    			<br />
    			<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder">
    				<tr>
    					<td class="thead">
    						<strong>Sort By</strong>
    					</td>
    				</tr>
    				<tr>
    					<td class="trow1">
    						<strong><a href="{$sorturl}&amp;sortby=subject&amp;order=asc">{$lang->thread}</a> {$orderarrow['subject']}</strong>
    					</td>
    				</tr>
    				<tr>
    					<td class="trow1">
    						<strong><a href="{$sorturl}&amp;sortby=starter&amp;order=asc">{$lang->author}</a> {$orderarrow['starter']}</strong>
    					</td>
    				</tr>
    				<tr>
    					<td class="trow1">
    						<strong><a href="{$sorturl}&amp;sortby=replies&amp;order=desc">{$lang->replies}</a> {$orderarrow['replies']}</strong>
    					</td>
    				</tr>
    				<tr>
    					<td class="trow1">
    						<strong><a href="{$sorturl}&amp;sortby=views&amp;order=desc">{$lang->views}</a> {$orderarrow['views']}</strong>
    					</td>
    				</tr>
    				{$ratingcol}
    				<tr>
    					<td class="trow1">
    						<strong><a href="{$sorturl}&amp;sortby=lastpost&amp;order=desc">{$lang->lastpost}</a> {$orderarrow['lastpost']}</strong>
    					</td>
    				</tr>
    			</table>
    			{$searchforum}
    		</td>
    		<td valign="top">
    			<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="{$filters_set['__all']['visiblecss']}">
    				<tr>
    					<td class="thead">
    						<strong>{$foruminfo['name']} &ndash; Vehicles Details</strong>
    					</td>
    				</tr>
    			</table>
    			{$threads}{$nullthreads}
    			<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="{$filters_set['__all']['visiblecss']}">
    				<tr>
    					<td class="tfoot" align="right" colspan="{$colspan}">
    						<form action="forumdisplay.php" method="get">
    							<input type="hidden" name="fid" value="{$fid}" />
    							<select name="sortby">
    								<option value="subject" {$sortsel['subject']}>{$lang->sort_by_subject}</option>
    								<option value="lastpost" {$sortsel['lastpost']}>{$lang->sort_by_lastpost}</option>
    								<option value="starter" {$sortsel['starter']}>{$lang->sort_by_starter}</option>
    								<option value="started" {$sortsel['started']}>{$lang->sort_by_started}</option>
    								{$ratingsort}
    								<option value="replies" {$sortsel['replies']}>{$lang->sort_by_replies}</option>
    								<option value="views" {$sortsel['views']}>{$lang->sort_by_views}</option>
    							</select>
    							<select name="order">
    								<option value="asc" {$ordersel['asc']}>{$lang->sort_order_asc}</option>
    								<option value="desc" {$ordersel['desc']}>{$lang->sort_order_desc}</option>
    							</select>
    							<select name="datecut">
    								<option value="1" {$datecutsel['1']}>{$lang->datelimit_1day}</option>
    								<option value="5" {$datecutsel['5']}>{$lang->datelimit_5days}</option>
    								<option value="10" {$datecutsel['10']}>{$lang->datelimit_10days}</option>
    								<option value="20" {$datecutsel['20']}>{$lang->datelimit_20days}</option>
    								<option value="50" {$datecutsel['50']}>{$lang->datelimit_50days}</option>
    								<option value="75" {$datecutsel['75']}>{$lang->datelimit_75days}</option>
    								<option value="100" {$datecutsel['100']}>{$lang->datelimit_100days}</option>
    								<option value="365" {$datecutsel['365']}>{$lang->datelimit_lastyear}</option>
    								<option value="9999" {$datecutsel['9999']}>{$lang->datelimit_beginning}</option>
    							</select>
    							{$gobutton}
    						</form>
    					</td>
    				</tr>
    			</table>
    			<div class="float_right" style="margin-top: 4px;{$filters_set['__all']['visiblecss']}">
    				{$newthread}
    			</div>
    		</td>
    	</tr>
    </table>
    <div class="float_left">
    	{$multipage}
    </div>
    <br style="clear: both;" />
    <br />
    <div class="float_right" style="text-align: right;">
    	{$inlinemod}
    	{$forumjump}
    </div>
    <br style="clear: both" />
    <div class="smalltext" align="center">
    Garage Forum<br />
    Powered By <a href="http://mybbhacks.zingaburga.com">XThreads</a> - <a href="http://mybbhacks.zingaburga.com">MyBB Hacks</a>
    </div>
    {$inline_edit_js}

  6. Template Name: gf_forumdisplay_threadlist_rating

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    <tr>
    	<td class="trow1">
    		<strong><a href="{$sorturl}&amp;sortby=rating&amp;order=desc">{$lang->rating}</a> {$orderarrow['rating']}</strong>
    		<script type="text/javascript" src="jscripts/rating.js?ver=1400"></script>
    		<script type="text/javascript">
    		<!--
    			lang.stars = new Array();
    			lang.stars[1] = "{$lang->one_star}";
    			lang.stars[2] = "{$lang->two_stars}";
    			lang.stars[3] = "{$lang->three_stars}";
    			lang.stars[4] = "{$lang->four_stars}";
    			lang.stars[5] = "{$lang->five_stars}";
    		// -->
    		</script>
    	</td>
    </tr>

  7. Template Name: gf_forumdisplay_threads_sep

    HTML Code
    <div style="display: none;"></div>

  8. Template Name: gf_forumdisplay_thread_modbit

    HTML Code
    <td class="{$bgcolor}" align="center" style="width: 1px; white-space: nowrap" rowspan="3"><input type="checkbox" class="checkbox" name="inlinemod_{$multitid}" id="inlinemod_{$multitid}" value="1" {$inlinecheck}  /></td>

  9. Template Name: gf_forumdisplay_thread_rating

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    <td align="center" class="tcat" id="rating_table_{$thread['tid']}">
    	<ul class="star_rating{$not_rated}" id="rating_thread_{$thread['tid']}">
    		<li style="width: {$thread['width']}%" class="current_rating" id="current_rating_{$thread['tid']}">{$ratingvotesav}</li>
    	</ul>
    	<script type="text/javascript">
    	<!--
    		Rating.build_forumdisplay({$thread['tid']}, { width: '{$thread['width']}', extra_class: '{$not_rated}', current_average: '{$ratingvotesav}' });
    	// -->
    	</script>
    </td>

  10. Template Name: gf_postbit_first

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    {$ignore_bit}
    <a name="pid{$post['pid']}" id="pid{$post['pid']}"></a>
    <table border="0" cellspacing="0" cellpadding="{$theme['tablespace']}" class="tborder" style="{$post_extra_style} {$post_visibility}" id="post_{$post['pid']}">
    	<tbody>
    		<tr>
    			<td class="tcat" colspan="2">
    				<div class="float_left smalltext">
    					<strong>{$thread['subject']} &ndash; Overview</strong> <span id="edited_by_{$post['pid']}">{$post['editedmsg']}</span>
    				</div>
    				{$post['posturl']}
    			</td>
    		</tr>

    		<tr>
    			<td class="trow1 {$unapproved_shade}" valign="top">
    				<table width="100%" border="0">
    					<tr>
    						<td width="150">Owner</td>
    						<td width="1">:</td>
    						<td>{$post['profilelink']}</td>
    					</tr>
    					<tr>
    						<td width="150">Data Added</td>
    						<td width="1">:</td>
    						<td>{$thread['threaddate']} &ndash; {$thread['threadtime']}</td>
    					</tr>
    					<tr>
    						<td width="150">Views</td>
    						<td width="1">:</td>
    						<td>{$thread['views']}</td>
    					</tr>
    					<tr>
    						<td width="150">Color</td>
    						<td width="1">:</td>
    						<td>{$GLOBALS['threadfields']['gfcolor']}</td>
    					</tr>
    					<tr>
    						<td width="150">Price</td>
    						<td width="1">:</td>
    						<td>{$GLOBALS['threadfields']['gfprice']}</td>
    					</tr>
    					<tr>
    						<td width="150">Odometer</td>
    						<td width="1">:</td>
    						<td>{$GLOBALS['threadfields']['gfodometer']}</td>
    					</tr>
    				</table>
    			</td>
    			<td class="trow1 {$unapproved_shade}" width="1" valign="middle" align="center">
    				<a href="{$GLOBALS['threadfields']['gfvimg']['url']}" target="_blank"><img src="{$GLOBALS['threadfields']['gfvimg']['thumbs']['160x120']['url']}" alt="{$post['subject']}" title="{$post['subject']}" /></a>
    			</td>
    		</tr>
    		<tr>
    			<td colspan="2" class="trow1 {$unapproved_shade}">
    				<div class="post_body" id="pid_{$post['pid']}">
    					{$post['message']}
    				</div>
    				<div class="post_meta" id="post_meta_{$post['pid']}">
    					{$post['iplogged']}
    				</div>
    			</td>
    		</tr>
    		<tr>
    			<td class="trow1 post_buttons {$unapproved_shade}" colspan="2">
    				<div class="author_buttons float_left">
    					{$post['button_email']}{$post['button_pm']}{$post['button_www']}{$post['button_find']}
    				</div>
    				<div class="post_management_buttons float_right">{$post['button_edit']}{$post['button_quickdelete']}{$post['button_quote']}{$post['button_multiquote']}{$post['button_report']}{$post['button_warn']}{$post['button_reply_pm']}{$post['button_replyall_pm']}{$post['button_forward_pm']}{$post['button_delete_pm']}
    				</div>
    			</td>
    		</tr>
    	</tbody>
    </table>

  11. Template Name: gf_postbit_first_classic

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    {$ignore_bit}
    <a name="pid{$post['pid']}" id="pid{$post['pid']}"></a>
    <table border="0" cellspacing="0" cellpadding="{$theme['tablespace']}" class="tborder" style="{$post_extra_style} {$post_visibility}" id="post_{$post['pid']}">
    	<tbody>
    		<tr>
    			<td class="tcat" colspan="2">
    				<div class="float_left smalltext">
    					<strong>{$thread['subject']} &ndash; Overview</strong> <span id="edited_by_{$post['pid']}">{$post['editedmsg']}</span>
    				</div>
    				{$post['posturl']}
    			</td>
    		</tr>

    		<tr>
    			<td class="trow1 {$unapproved_shade}" valign="top">
    				<table width="100%" border="0">
    					<tr>
    						<td width="150">Owner</td>
    						<td width="1">:</td>
    						<td>{$post['profilelink']}</td>
    					</tr>
    					<tr>
    						<td width="150">Data Added</td>
    						<td width="1">:</td>
    						<td>{$thread['threaddate']} &ndash; {$thread['threadtime']}</td>
    					</tr>
    					<tr>
    						<td width="150">Views</td>
    						<td width="1">:</td>
    						<td>{$thread['views']}</td>
    					</tr>
    					<tr>
    						<td width="150">Color</td>
    						<td width="1">:</td>
    						<td>{$GLOBALS['threadfields']['gfcolor']}</td>
    					</tr>
    					<tr>
    						<td width="150">Price</td>
    						<td width="1">:</td>
    						<td>{$GLOBALS['threadfields']['gfprice']}</td>
    					</tr>
    					<tr>
    						<td width="150">Odometer</td>
    						<td width="1">:</td>
    						<td>{$GLOBALS['threadfields']['gfodometer']}</td>
    					</tr>
    				</table>
    			</td>
    			<td class="trow1 {$unapproved_shade}" width="1" valign="middle" align="center">
    				<a href="{$GLOBALS['threadfields']['gfvimg']['url']}" target="_blank"><img src="{$GLOBALS['threadfields']['gfvimg']['thumbs']['160x120']['url']}" alt="{$post['subject']}" title="{$post['subject']}" /></a>
    			</td>
    		</tr>
    		<tr>
    			<td colspan="2" class="trow1 {$unapproved_shade}">
    				<div class="post_body" id="pid_{$post['pid']}">
    					{$post['message']}
    				</div>
    				<div class="post_meta" id="post_meta_{$post['pid']}">
    					{$post['iplogged']}
    				</div>
    			</td>
    		</tr>
    		<tr>
    			<td class="trow1 post_buttons {$unapproved_shade}" colspan="2">
    				<div class="author_buttons float_left">
    					{$post['button_email']}{$post['button_pm']}{$post['button_www']}{$post['button_find']}
    				</div>
    				<div class="post_management_buttons float_right">{$post['button_edit']}{$post['button_quickdelete']}{$post['button_quote']}{$post['button_multiquote']}{$post['button_report']}{$post['button_warn']}{$post['button_reply_pm']}{$post['button_replyall_pm']}{$post['button_forward_pm']}{$post['button_delete_pm']}
    				</div>
    			</td>
    		</tr>
    	</tbody>
    </table>

  12. Template Name: gf_showthread

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    150
    151
    152
    153
    154
    155
    156
    157
    158
    159
    160
    161
    162
    163
    164
    165
    166
    167
    168
    169
    170
    171
    172
    173
    174
    175
    176
    177
    178
    179
    180
    181
    182
    183
    184
    185
    186
    187
    188
    189
    190
    191
    192
    193
    <html>
    <head>
    <title>{$thread['subject']}</title>
    {$headerinclude}
    <script type="text/javascript">
    <!--
    	var quickdelete_confirm = "{$lang->quickdelete_confirm}";
    // -->
    </script>
    <script type="text/javascript" src="jscripts/thread.js?ver=1400"></script>
    <script type="text/javascript" src="jscripts/jquery-1.3.2.min.js"></script>
    <script type="text/javascript">
    	$.noConflict();
    </script>
    <style type="text/css">
    .at {background: #026CB1 url(images/thead_bg.gif) top left repeat-x;color: #ffffff;}
    #image, #mod, #details {display: none;}
    </style>
    </head>
    <body>
    {$header}
    {$pollbox}
    <div class="float_left">
    	{$multipage}
    </div>
    <div class="float_right">
    	{$newreply}
    </div>
    <br style="clear: both;" />
    <table border="0" width="100%">
    	<tr>
    		<td width="200" valign="top">
    			<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder">
    				<tr>
    					<td class="thead">
    						<strong>{$forum['name']}</strong>
    					</td>
    				</tr>
    				<tr>
    					<td class="trow1" colspan="{$colspan}">
    						<strong><a href="{$forumurl}">Garage Home</a></strong>
    					</td>
    				</tr>
    				<tr>
    					<td class="trow1" colspan="{$colspan}">
    						<strong><a href="{$forumurl_q}filtertf_gfbv=Browse Vehicle">Vehicle Details</a></strong>
    					</td>
    				</tr>
    			</table>
    			{$search_thread}
    		</td>
    		<td valign="top">
    			<script type="text/javascript">
    				jQuery(document).ready(function($){
    					$('.tab').click(function(){
    						$('.at').removeClass('at');
    						$(this).addClass('at');
    						$('.content').slideUp();
    						var catshow = $(this).attr('abbr');
    						$('#'+ catshow).slideDown();
    					});
    				});
    			</script>
    			<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="clear: both; border-bottom-width: 0;">
    				<tr>
    					<td class="tcat at tab" title="Overview" style="cursor: pointer; text-align: center;" abbr="overview">
    						<strong>Overview</strong>
    					</td>
    					<td class="tcat tab" title="Images" style="cursor: pointer; text-align: center;" abbr="image">
    						<strong>Images</strong>
    					</td>
    					<td class="tcat tab" title="Vehicle Modification" style="cursor: pointer; text-align: center;" abbr="mod">
    						<strong>Modification</strong>
    					</td>
    					<td class="tcat tab" title="Vehicle Details" style="cursor: pointer; text-align: center;" abbr="details">
    						<strong>Details</strong>
    					</td>
    				</tr>
    			</table>
    			<table border="0" cellspacing="0" cellpadding="{$theme['tablespace']}" class="tborder" style="clear: both; border-bottom-width: 0; border-top-width: 0;">
    				<tr>
    					<td class="thead" colspan="2">
    						{$ratethread}
    						<strong><a href="{$threadurl}">{$thread['subject']}</a></strong>
    					</td>
    				</tr>
    			</table>
    			<div id="overview" class="content">
    				{$first_post}
    			</div>
    			<div id="image" class="content">
    				<table border="0" cellspacing="0" cellpadding="{$theme['tablespace']}" class="tborder">
    					<tr>
    						<td class="tcat">
    							<div class="float_left smalltext">
    								<strong>{$thread['subject']} - Images</strong>
    							</div>
    						</td>
    					</tr>
    					<tr>
    						<td class="trow1" align="center">
    							{$GLOBALS['threadfields']['gfvimg2']['value']}{$GLOBALS['threadfields']['gfvimg3']['value']}
    						</td>
    					</tr>
    				</table>
    			</div>
    			<div id="mod" class="content">
    				<table border="0" cellspacing="0" cellpadding="{$theme['tablespace']}" class="tborder">
    					<tr>
    						<td class="tcat">
    							<div class="float_left smalltext">
    								<strong>{$thread['subject']} - Modification</strong>
    							</div>
    						</td>
    					</tr>
    					<tr>
    						<td class="trow1" align="center">
    							{$GLOBALS['threadfields']['gfmimg1']['value']}{$GLOBALS['threadfields']['gfmimg2']['value']}
    						</td>
    					</tr>
    				</table>
    			</div>
    			<div id="details" class="content">
    				<table border="0" cellspacing="0" cellpadding="{$theme['tablespace']}" class="tborder">
    					<tr>
    						<td class="tcat" colspan="3">
    							<div class="float_left smalltext">
    								<strong>{$thread['subject']} - Details</strong>
    							</div>
    						</td>
    					</tr>
    					<tr>
    						<td class="trow1" width="150">Data Added</td>
    						<td class="trow1" width="1">:</td>
    						<td class="trow1">{$thread['threaddate']} - {$thread['threadtime']}</td>
    					</tr>
    					<tr>
    						<td class="trow1" width="150">Views</td>
    						<td class="trow1" width="1">:</td>
    						<td class="trow1">{$thread['views']}</td>
    					</tr>
    					<tr>
    						<td class="trow1" width="150">Color</td>
    						<td class="trow1" width="1">:</td>
    						<td class="trow1">{$GLOBALS['threadfields']['gfcolor']}</td>
    					</tr>
    					<tr>
    						<td class="trow1" width="150">Price</td>
    						<td class="trow1" width="1">:</td>
    						<td class="trow1">{$GLOBALS['threadfields']['gfprice']}</td>
    					</tr>
    					<tr>
    						<td class="trow1" width="150">Odometer</td>
    						<td class="trow1" width="1">:</td>
    						<td class="trow1">{$GLOBALS['threadfields']['gfodometer']}</td>
    					</tr>
    				</table>
    			</div>
    			<br class="clear" />
    			<div align="center">
    				<strong>&laquo; <a href="{$next_oldest_link}">{$lang->next_oldest}</a> | <a href="{$next_newest_link}">{$lang->next_newest}</a> &raquo;</strong>
    			</div>
    			<br class="clear" />
    			<strong>Comments</strong>
    			<div id="posts">
    				{$posts}
    			</div>
    			<div class="float_left">
    				{$multipage}
    			</div>
    			<div style="padding-top: 4px;" class="float_right">
    				{$newreply}
    			</div>
    			<br style="clear: both;" />
    			{$quickreply}
    			{$threadexbox}
    			{$similarthreads}
    			<br />
    			<div class="float_right" style="text-align: right;">
    				{$moderationoptions}
    				{$forumjump}
    			</div>
    		</td>
    	</tr>
    </table>
    <br style="clear: both;" />
    <div class="smalltext" align="center">
    Garage Forum<br />
    Powered By <a href="http://mybbhacks.zingaburga.com">XThreads</a> - <a href="http://mybbhacks.zingaburga.com">MyBB Hacks</a>
    </div>
    {$footer}
    </body>
    </html>

    Well, we are using jQuery tabs here. Not the best jQuery tabs. If you have other jQuery or other javascript framework tabs, use it. Personally, I prefer to use MyBb tabs. But it is a bit hard to control (for me Biggrin) If we don't have jQuery yet, we need to download, and upload it to our jscripts folder. Or, we can use google libraries. but if we already have jQuery attached in our forum and "works" in showthread page, remove line #11 - #14. I get this jQuery tabs from this post: http://community.mybb.com/thread-62039.html Funny story.... Biggrin

  13. Template Name: gf_showthread_noreplies

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    <br class="clear" />
    <div id="xthreads_noreplies">
    	<table border="0" cellspacing="{$GLOBALS['theme']['borderwidth']}" cellpadding="{$GLOBALS['theme']['tablespace']}" class="tborder">
    		<tr>
    			<td class="tcat">
    				<em><strong>No comments yet</strong></em>
    			</td>
    		</tr>
    	</table>
    </div>

  14. Template Name: gf_showthread_ratethread

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    <div class="float_right">
    	<script type="text/javascript" src="jscripts/rating.js?ver=1400"></script>
    	<div id="success_rating_{$thread['tid']}" style="float: left; padding-top: 2px; padding-right: 10px;">&nbsp;</div>
    	<strong style="float: left; padding-right: 10px;">{$lang->thread_rating}</strong>
    	<div class="inline_rating">
    		<ul class="star_rating{$not_rated}" id="rating_thread_{$thread['tid']}">
    			<li style="width: {$thread['width']}%" class="current_rating" id="current_rating_{$thread['tid']}">{$ratingvotesav}</li>
    			<li><a class="one_star" title="{$lang->one_star}" href="./ratethread.php?tid={$thread['tid']}&amp;rating=1&amp;my_post_key={$mybb->post_code}">1</a></li>
    			<li><a class="two_stars" title="{$lang->two_stars}" href="./ratethread.php?tid={$thread['tid']}&amp;rating=2&amp;my_post_key={$mybb->post_code}">2</a></li>
    			<li><a class="three_stars" title="{$lang->three_stars}" href="./ratethread.php?tid={$thread['tid']}&amp;rating=3&amp;my_post_key={$mybb->post_code}">3</a></li>
    			<li><a class="four_stars" title="{$lang->four_stars}" href="./ratethread.php?tid={$thread['tid']}&amp;rating=4&amp;my_post_key={$mybb->post_code}">4</a></li>
    			<li><a class="five_stars" title="{$lang->five_stars}" href="./ratethread.php?tid={$thread['tid']}&amp;rating=5&amp;my_post_key={$mybb->post_code}">5</a></li>
    		</ul>
    	</div>
    </div>

  15. Template Name: gf_showthread_search

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    <br class="clear" />
    <table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder">
    	<tr>
    		<td class="thead">
    			<strong>Search Comments</strong>
    		</td>
    	</tr>
    	<tr>
    		<td class="trow1" align="center">
    		<form action="search.php" method="post">
    			<input type="hidden" name="action" value="thread" />
    			<input type="hidden" name="tid" value="{$thread['tid']}" />
    			<input type="text" name="keywords" value="{$lang->enter_keywords}" onfocus="if(this.value == '{$lang->enter_keywords}') { this.value = ''; }" onblur="if(this.value=='') { this.value='{$lang->enter_keywords}'; }" class="textbox" size="25" />
    			<br /><input type="submit" class="button" value="{$lang->search_thread}" />
    		</form>
    		</td>
    	</tr>
    </table>



I've repeated many fields in this example, like in the overview tab and details tab. Just modify it. Template above based on MyBB 1.4 template.

Logs:
05 Oct 2010

Screenshots:
Thread List:
We have "two" thread list layout there Biggrin

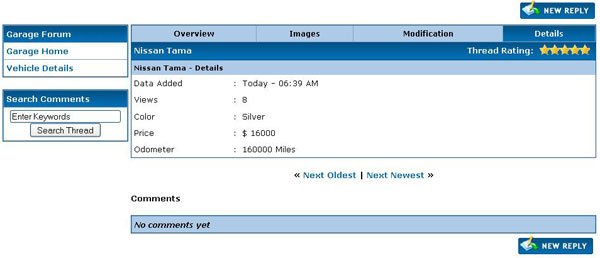

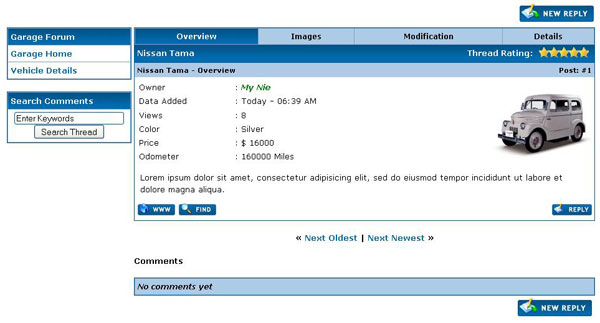

Show thread:
Like I said before, I've repeated many fields here. Just modify it.


Live Demo:
http://xtest.byethost7.com/forumdisplay.php?fid=8 (you can test it here)
http://www.7173mustangs.com/forum-garage

(This post was last modified: 10-23-2011 04:53 AM by RateU.)
09-09-2010 08:35 AM
Find all posts by this user Quote this message in a reply
techu Offline
Member
***
Posts: 154
Joined: Sep 2010
Post: #3
RE: X-Threads Garage?
that is very nice.....

[Image: banner.png]
09-09-2010 01:26 PM
Find all posts by this user Quote this message in a reply
ZiNgA BuRgA Offline
Fag
*******
Posts: 3,357
Joined: Jan 2008
Post: #4
RE: X-Threads Garage?
Having different display styles when filters are used is a very interesting concept Smile

My Blog
09-09-2010 02:59 PM
Find all posts by this user Quote this message in a reply
RocketFoot Offline
Senior Member
****
Posts: 338
Joined: Jul 2010
Post: #5
RE: X-Threads Garage?
Brilliant!  I love it!  Thank you so much!

One other minor question...is there a way to put a link in the post bit so people can visit a member's garage?

Thanks again! Biggrin
09-10-2010 06:35 AM
Find all posts by this user Quote this message in a reply
RateU Offline
Administrator
*******
Posts: 2,350
Joined: Mar 2010
Post: #6
RE: X-Threads Garage?
Thanks, Techu, Yumi Smile


(09-10-2010 06:35 AM)RocketFoot Wrote:  One other minor question...is there a way to put a link in the post bit so people can visit a member's garage?

I think you need a plugin for that.

09-10-2010 09:36 AM
Find all posts by this user Quote this message in a reply
RocketFoot Offline
Senior Member
****
Posts: 338
Joined: Jul 2010
Post: #7
RE: X-Threads Garage?
OK, I got everything done but I am confused on custom thread field setting 1...browse vehicle?

http://www.7173mustangs.com/forum-garage  (Click new thread to see what I mean)

The list box only has one choice...

I also noticed that I can not change between overview, images, modification and details...I must have not gotten the jqueary bit right??
(This post was last modified: 09-10-2010 09:11 PM by RocketFoot.)
09-10-2010 08:43 PM
Find all posts by this user Quote this message in a reply
ZiNgA BuRgA Offline
Fag
*******
Posts: 3,357
Joined: Jan 2008
Post: #8
RE: X-Threads Garage?
It's fine - it's just there to allow the different view to work.

You can hide the field if you wish.  If you do, you need to make a copy of the newthread and editpost templates, naming them gf_newthread and gf_editpost_first respectively.  In these copies, find

HTML Code
<input type="hidden" name="posthash" value="{$posthash}" />

and add after

HTML Code
<input type="hidden" name="xthreads_gfbv" value="Browse Vehicle" />


Hope that works and helps.


My Blog
09-10-2010 08:57 PM
Find all posts by this user Quote this message in a reply
RocketFoot Offline
Senior Member
****
Posts: 338
Joined: Jul 2010
Post: #9
RE: X-Threads Garage?
Ah, I see!  I have an editpost but no newthread template?

Also, What about my jqueary problem?  I can't seem to get the jqueary bit to work on the vehicle detail.  I have uploaded the jqueary file to my jscripts folder but still no work.  Is there another step I need to do other than upload the file to my folder?
(This post was last modified: 09-10-2010 09:46 PM by RocketFoot.)
09-10-2010 09:11 PM
Find all posts by this user Quote this message in a reply
ZiNgA BuRgA Offline
Fag
*******
Posts: 3,357
Joined: Jan 2008
Post: #10
RE: X-Threads Garage?
(09-10-2010 09:11 PM)RocketFoot Wrote:  Ah, I see!  I have an editpost but no newthread template?
Do a search on the templates page for "New Thread"...

(09-10-2010 09:11 PM)RocketFoot Wrote:  Also, What about my jqueary problem?  I can't seem to get the jqueary bit to work on the vehicle detail.  I have uploaded the jqueary file to my jscripts folder but still no work.  Is there another step I need to do other than upload the file to my folder?
I strongly suggest trying to read the templates that you actually add, using your own intuition rather than blindly following instructions.
There's a reference to "jscripts/jquery-1.3.2.min.js" but it obviously doesn't exist: http://www.7173mustangs.com/jscripts/jqu...http://www.7173mustangs.com/jscripts/jquery-1.

You probably uploaded it as "jscripts/jquery.js": http://www.7173mustangs.com/jscripts/jquery.js

My Blog
09-10-2010 10:23 PM
Find all posts by this user Quote this message in a reply

« Next Oldest | Next Newest »

 Standard Tools
Forum Jump:
