MyCodes Database

[RateU]

Requirement: XThreads

We will try to create a simple MyCodes Database using XThreads.

Create or edit a forum with these settings:

• Template Prefix: mcde_
• Enable XThreads' Inline Forum Search: Yes
• Allow Blank Post Message: Yes
• Custom WOL Text:
  • Forum Display:
    HTML Code

    Viewing <a href="{1}">{2}</a>

    ---

  • New Thread:
    HTML Code

    Submitting a new MyCode

    ---

  • New Reply:
    HTML Code

    Commenting on <a href="{1}">{2}</a> MyCode

    ---

  • Show Thread:
    HTML Code

    Reading<a href="{1}">{2}</a> MyCode

    ---

Probably we need to set the forum permission.


Create a Custom Thread Fields with these settings:
AdminCP -> Configuration -> Custom Thread Fields

1. Textbox for Short Description:
   • Title: Short Description
   • Key: mcdedesc
   • Applicable Forums: 'select our MyCodes Database forum'
   • Input Field Type: Textbox
   • Editable by / Required Field?: Everyone (required)
   • Display Order: 1

2. Textbox for Regular Expression:
   • Title: Regular Expression
   • Key: mcdere
   • Applicable Forums: 'select our MyCodes Database forum'
   • Input Field Type: Textbox
   • Editable by / Required Field?: Everyone (required)
   • Display Order: 2
   • Display Format:

     HTML Code

     <pre class="codeblock" id="mcdere_{$thread['tid']}" style="float: left; margin: 3px; width: 600px; height: 20px; overflow: auto;">{VALUE}</pre> <input type="button" value="Select" onClick="window.selectNode(document.getElementById('mcdere_{$thread['tid']}'));">

     ---

3. Multiline Textbox for Replacement:
   • Title: Replacement
   • Key: mcderep
   • Applicable Forums: 'select our MyCodes Database forum'
   • Input Field Type: Multiline Textbox
   • Editable by / Required Field?: Everyone (required)
   • Display Order: 3
   • Display Format:

     HTML Code

     <pre class="codeblock" id="mcderep_{$thread['tid']}" style="float: left; margin: 3px; width: 600px; height: 50px; overflow: auto;">{VALUE}</pre> <input type="button" value="Select" onClick="window.selectNode(document.getElementById('mcderep_{$thread['tid']}'));">

     ---

4. Multiline Textbox for Example:
   • Title: Example
   • Key: mcdeex
   • Applicable Forums: 'select our MyCodes Database forum'
   • Input Field Type: Multiline Textbox
   • Editable by / Required Field?: Everyone (required)
   • Display Parsing: Use MyBB Parser
     • MyBB Parser Options: Check all except the Allow HTML.

   • Display Order: 4
   • Display Format:

     Code:

     <func nl2br><func htmlspecialchars_uni>{RAWVALUE}</func></func> <setvar result>{VALUE}</setvar> <setvar result_text>'Result'</setvar>

     ---

Create new templates in Global Template.
Admin CP -> Templates & Style -> Templates -> Global Templates:

1. mcde_forumdisplay_thread

   HTML Code

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48

   <tr> <td class="{$bgcolor}{$thread_type_class}" colspan="2"> {$attachment_count} <div> <span>{$prefix} {$gotounread}{$thread['threadprefix']}<a href="{$thread['threadlink']}" class="{$inline_edit_class} {$new_class}" id="tid_{$inline_edit_tid}">{$thread['subject']}</a>{$thread['multipage']}</span> <div class="smalltext">{$GLOBALS['threadfields']['mcdedesc']}</div> <div class="author smalltext">{$thread['profilelink']}</div> </div> </td> <td align="center" class="{$bgcolor}{$thread_type_class}"><a href="javascript:MyBB.whoPosted({$thread['tid']});">{$thread['replies']}</a>{$unapproved_posts}</td> <td align="center" class="{$bgcolor}{$thread_type_class}">{$thread['views']}</td> {$rating} <td class="{$bgcolor}{$thread_type_class}" style="white-space: nowrap; text-align: right;"> <span class="lastpost smalltext">{$lastpostdate} {$lastposttime}<br /> <a href="{$thread['lastpostlink']}">{$lang->lastpost}</a>: {$lastposterlink}</span> </td> {$modbit} </tr> <tr> <td class="{$bgcolor}{$thread_type_class}" colspan="{$colspan}"> <table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="border: 0px;"> <tr> <td class="{$bgcolor}{$thread_type_class}" style="width: 1%; white-space: nowrap;"> <div class="smalltext">{$GLOBALS['threadfields_x']['mcdere']['title']}</div> </td> <td class="{$bgcolor}{$thread_type_class}">{$GLOBALS['threadfields']['mcdere']}</td> </tr> <tr> <td class="{$bgcolor}{$thread_type_class}" style="white-space: nowrap;"> <div class="smalltext">{$GLOBALS['threadfields_x']['mcderep']['title']}</div> </td> <td class="{$bgcolor}{$thread_type_class}">{$GLOBALS['threadfields']['mcderep']}</td> </tr> <tr> <td class="{$bgcolor}{$thread_type_class}" style="white-space: nowrap;"> <div class="smalltext">{$GLOBALS['threadfields_x']['mcdeex']['title']}</div> </td> <td class="{$bgcolor}{$thread_type_class}"><div class="post_body">{$GLOBALS['threadfields']['mcdeex']}</div></td> </tr> <tr> <td class="{$bgcolor}{$thread_type_class}" style="white-space: nowrap;"> <div class="smalltext">{$GLOBALS['tplvars']['result_text']}</div> </td> <td class="{$bgcolor}{$thread_type_class}"><div class="post_body">{$GLOBALS['tplvars']['result']}</div></td> </tr> </table> </td> </tr>

   ---

2. mcde_forumdisplay_threadlist

   HTML Code

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119

   <script type="text/javascript"> function selectNode (node){ var selection, range, doc, win; if ((doc = node.ownerDocument) && (win = doc.defaultView) && typeof win.getSelection != 'undefined' && typeof doc.createRange != 'undefined' && (selection = window.getSelection()) && typeof selection.removeAllRanges != 'undefined') { range = doc.createRange(); range.selectNode(node); selection.removeAllRanges(); selection.addRange(range); } else if (document.body && typeof document.body.createTextRange != 'undefined' && (range = document.body.createTextRange())){ range.moveToElementText(node); range.select(); } } </script> <div class="float_left"> {$multipage} </div> <div class="float_right"> {$newthread} </div> <table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="clear: both;"> <tr> <td class="thead" colspan="{$colspan}"> <div style="float: right;"> <span class="smalltext"><strong><a href="misc.php?action=markread&amp;fid={$fid}{$post_code_string}">{$lang->markforum_read}</a> | <a href="usercp2.php?action={$add_remove_subscription}subscription&amp;type=forum&amp;fid={$fid}&amp;my_post_key={$mybb->post_code}">{$add_remove_subscription_text}</a>{$clearstoredpass}</strong></span> </div> <div> <strong>{$foruminfo['name']}</strong> </div> </td> </tr> <tr> <td class="tcat" colspan="2" width="66%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=subject&amp;order=asc">{$lang->thread}</a> {$orderarrow['subject']} / <a href="{$sorturl}&amp;sortby=starter&amp;order=asc">{$lang->author}</a> {$orderarrow['starter']}</strong></span></td> <td class="tcat" align="center" width="7%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=replies&amp;order=desc">{$lang->replies}</a> {$orderarrow['replies']}</strong></span></td> <td class="tcat" align="center" width="7%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=views&amp;order=desc">{$lang->views}</a> {$orderarrow['views']}</strong></span></td> {$ratingcol} <td class="tcat" align="right" width="20%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=lastpost&amp;order=desc">{$lang->lastpost}</a> {$orderarrow['lastpost']}</strong></span></td> {$inlinemodcol} </tr> {$selectall} {$announcementlist} {$threads}{$nullthreads} <tr> <td class="tfoot" align="right" colspan="{$colspan}"> <form action="forumdisplay.php" method="get"> <input type="hidden" name="selectall" value="{$allselected}" /> <input type="hidden" name="fid" value="{$fid}" /> <select name="sortby"> {$sort_by_prefix}<option value="subject" {$sortsel['subject']}>{$lang->sort_by_subject}</option> <option value="lastpost" {$sortsel['lastpost']}>{$lang->sort_by_lastpost}</option> <option value="starter" {$sortsel['starter']}>{$lang->sort_by_starter}</option> <option value="started" {$sortsel['started']}>{$lang->sort_by_started}</option> {$ratingsort} <option value="replies" {$sortsel['replies']}>{$lang->sort_by_replies}</option> <option value="views" {$sortsel['views']}>{$lang->sort_by_views}</option> <option value="icon" {$sortsel['icon']}>{$lang->sort_by_icon}</option> <option value="lastposter" {$sortsel['lastposter']}>{$lang->sort_by_lastposter}</option> <option value="attachmentcount" {$sortsel['attachmentcount']}>{$lang->sort_by_attachmentcount}</option> {$xthreads_extra_sorting} </select> <select name="order"> <option value="asc" {$ordersel['asc']}>{$lang->sort_order_asc}</option> <option value="desc" {$ordersel['desc']}>{$lang->sort_order_desc}</option> </select> <select name="datecut"> <option value="1" {$datecutsel['1']}>{$lang->datelimit_1day}</option> <option value="5" {$datecutsel['5']}>{$lang->datelimit_5days}</option> <option value="10" {$datecutsel['10']}>{$lang->datelimit_10days}</option> <option value="20" {$datecutsel['20']}>{$lang->datelimit_20days}</option> <option value="50" {$datecutsel['50']}>{$lang->datelimit_50days}</option> <option value="75" {$datecutsel['75']}>{$lang->datelimit_75days}</option> <option value="100" {$datecutsel['100']}>{$lang->datelimit_100days}</option> <option value="365" {$datecutsel['365']}>{$lang->datelimit_lastyear}</option> <option value="9999" {$datecutsel['9999']}>{$lang->datelimit_beginning}</option> </select> {$gobutton} </form> </td> </tr> </table> <div class="float_left"> {$multipage} </div> <div class="float_right" style="margin-top: 4px;"> {$newthread} </div> <br style="clear: both;" /> <br /> <div class="float_left"> <div class="float_left"> <dl class="thread_legend smalltext"> <dd><img src="{$theme['imgdir']}/newfolder.gif" alt="{$lang->new_thread}" title="{$lang->new_thread}" /> {$lang->new_thread}</dd> <dd><img src="{$theme['imgdir']}/newhotfolder.gif" alt="{$lang->new_hot_thread}" title="{$lang->new_hot_thread}" /> {$lang->new_hot_thread}</dd> <dd><img src="{$theme['imgdir']}/hotfolder.gif" alt="{$lang->hot_thread}" title="{$lang->hot_thread}" /> {$lang->hot_thread}</dd> </dl> </div> <div class="float_left"> <dl class="thread_legend smalltext"> <dd><img src="{$theme['imgdir']}/folder.gif" alt="{$lang->no_new_thread}" title="{$lang->no_new_thread}" /> {$lang->no_new_thread}</dd> <dd><img src="{$theme['imgdir']}/dot_folder.gif" alt="{$lang->posts_by_you}" title="{$lang->posts_by_you}" /> {$lang->posts_by_you}</dd> <dd><img src="{$theme['imgdir']}/lockfolder.gif" alt="{$lang->locked_thread}" title="{$lang->locked_thread}" /> {$lang->locked_thread}</dd> </dl> </div> <br style="clear: both" /> </div> <div class="float_right" style="text-align: right;"> {$inlinemod} {$searchforum} {$forumjump} </div> <br style="clear: both" /> <div class="smalltext" align="center"> {$foruminfo['name']}<br /> Powered By <a href="http://mybbhacks.zingaburga.com/showthread.php?tid=288">XThreads</a> - <a href="http://mybbhacks.zingaburga.com">MyBB Hacks</a> </div> {$inline_edit_js}

   ---

3. mcde_postbit_first

   HTML Code

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106

   <script type="text/javascript"> function selectNode (node){ var selection, range, doc, win; if ((doc = node.ownerDocument) && (win = doc.defaultView) && typeof win.getSelection != 'undefined' && typeof doc.createRange != 'undefined' && (selection = window.getSelection()) && typeof selection.removeAllRanges != 'undefined') { range = doc.createRange(); range.selectNode(node); selection.removeAllRanges(); selection.addRange(range); } else if (document.body && typeof document.body.createTextRange != 'undefined' && (range = document.body.createTextRange())){ range.moveToElementText(node); range.select(); } } </script> {$ignore_bit} <a name="pid{$post['pid']}" id="pid{$post['pid']}"></a> <table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="{$post_extra_style} {$post_visibility}" id="post_{$post['pid']}"> <tbody> <tr> <td class="tcat"> <div class="float_left smalltext"> {$post['postdate']}, {$post['posttime']} <span id="edited_by_{$post['pid']}">{$post['editedmsg']}</span> </div> {$post['posturl']} </td> </tr> <tr> <td class="trow1 {$unapproved_shade}"> <table cellspacing="0" cellpadding="0" border="0" style="width: 100%;"> <tr> <td class="post_avatar" width="1" style="{$post['avatar_padding']}"> {$post['useravatar']} </td> <td class="post_author"> <strong><span class="largetext">{$post['profilelink']}</span></strong> {$post['onlinestatus']}<br /> <span class="smalltext"> {$post['usertitle']}<br /> {$post['userstars']} {$post['groupimage']} </span> </td> <td class="smalltext post_author_info" width="165"> {$post['user_details']} </td> </tr> </table> </td> </tr> <tr> <td class="trow2 post_content {$unapproved_shade}"> <div class="clear"> <strong>{$post['subject']} {$post['subject_extra']}</strong><br /> {$GLOBALS['threadfields']['mcdedesc']} </div> <br class="clear" /> <div class="clear"> <strong>{$GLOBALS['threadfields_x']['mcdere']['title']}</strong> <br class="clear" /> {$GLOBALS['threadfields']['mcdere']} </div> <br class="clear" /> <div class="clear"> <strong>{$GLOBALS['threadfields_x']['mcderep']['title']}</strong> <br class="clear" /> {$GLOBALS['threadfields']['mcderep']} </div> <br class="clear" /> <br /> <div class="clear"> <strong>{$GLOBALS['threadfields_x']['mcdeex']['title']}</strong> <br class="clear" /> {$GLOBALS['threadfields']['mcdeex']} </div> <br class="clear" /> <div class="clear"> <strong>{$GLOBALS['tplvars']['result_text']}</strong> <br class="clear" /> {$GLOBALS['tplvars']['result']} </div> <br class="clear" /> <div class="post_body" id="pid_{$post['pid']}"> {$post['message']} </div> {$post['attachments']} {$post['signature']} <div class="post_meta" id="post_meta_{$post['pid']}"> {$post['iplogged']} </div> </td> </tr> <tr> <td class="trow1 post_buttons {$unapproved_shade}"> <div class="author_buttons float_left"> {$post['button_email']}{$post['button_pm']}{$post['button_www']}{$post['button_find']}{$post['button_rep']} </div> <div class="post_management_buttons float_right">{$post['button_edit']}{$post['button_quickdelete']}{$post['button_quote']}{$post['button_multiquote']}{$post['button_report']}{$post['button_warn']}{$post['button_reply_pm']}{$post['button_replyall_pm']}{$post['button_forward_pm']}{$post['button_delete_pm']} </div> </td> </tr> </tbody> </table>

   ---

4. mcde_postbit_first_classic

   HTML Code

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86

   <script type="text/javascript"> function selectNode (node){ var selection, range, doc, win; if ((doc = node.ownerDocument) && (win = doc.defaultView) && typeof win.getSelection != 'undefined' && typeof doc.createRange != 'undefined' && (selection = window.getSelection()) && typeof selection.removeAllRanges != 'undefined') { range = doc.createRange(); range.selectNode(node); selection.removeAllRanges(); selection.addRange(range); } else if (document.body && typeof document.body.createTextRange != 'undefined' && (range = document.body.createTextRange())){ range.moveToElementText(node); range.select(); } } </script> {$ignore_bit} <table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="{$post_extra_style} {$post_visibility}" id="post_{$post['pid']}"> <tr> <td class="{$altbg}" width="15%" valign="top" style="white-space: nowrap; text-align: center;"><a name="pid{$post['pid']}" id="pid{$post['pid']}"></a> <strong><span class="largetext">{$post['profilelink']}</span></strong> {$post['onlinestatus']}<br /> <span class="smalltext"> {$post['usertitle']}<br /> {$post['userstars']} {$post['groupimage']} {$post['useravatar']}<br /> {$post['user_details']} </span> </td> <td class="{$altbg}" valign="top"> <table width="100%"> <tr><td> <div class="clear"> <strong>{$post['subject']} {$post['subject_extra']}</strong><br /> {$GLOBALS['threadfields']['mcdedesc']} </div> <br class="clear" /> <div class="clear"> <strong>{$GLOBALS['threadfields_x']['mcdere']['title']}</strong> <br class="clear" /> {$GLOBALS['threadfields']['mcdere']} </div> <br class="clear" /> <div class="clear"> <strong>{$GLOBALS['threadfields_x']['mcderep']['title']}</strong> <br class="clear" /> {$GLOBALS['threadfields']['mcderep']} </div> <br class="clear" /> <br /> <div class="clear"> <strong>{$GLOBALS['threadfields_x']['mcdeex']['title']}</strong> <br class="clear" /> {$GLOBALS['threadfields']['mcdeex']} </div> <br class="clear" /> <div class="clear"> <strong>{$GLOBALS['tplvars']['result_text']}</strong> <br class="clear" /> {$GLOBALS['tplvars']['result']} </div> <br class="clear" /> <div id="pid_{$post['pid']}" style="padding: 5px 0 5px 0;"> {$post['message']} </div> {$post['attachments']} {$post['signature']} <div style="text-align: right; vertical-align: bottom;" id="post_meta_{$post['pid']}"> <div id="edited_by_{$post['pid']}">{$post['editedmsg']}</div> {$post['iplogged']} </div> </td></tr> </table> </td> </tr> <tr> <td class="{$altbg}" style="white-space: nowrap; text-align: center; vertical-align: middle;"><span class="smalltext">{$post['postdate']} {$post['posttime']}</span></td> <td class="{$altbg}" style="vertical-align: middle;"> <table width="100%" border="0" cellpadding="0" cellspacing="0"> <tr valign="bottom"> <td align="left" ><span class="smalltext">{$post['button_email']}{$post['button_pm']}{$post['button_www']}{$post['button_find']}{$post['button_rep']}</span></td> <td align="right">{$post['button_edit']}{$post['button_quickdelete']}{$post['button_quote']}{$post['button_multiquote']}{$post['button_report']}{$post['button_warn']}{$post['button_reply_pm']}{$post['button_replyall_pm']}{$post['button_forward_pm']}{$post['button_delete_pm']}</td> </tr> </table> </td> </tr> </table>

   ---

That's our simple MyCodes Database

Additional Info:

• The MyCode Result will be "generated automatically" if we have the MyCode installed on our forum.
• If we don't want the Regular Expression and the Replacement to be selectable, remove the javascript and the button from its Display Format. I get the javascript from the internet. I don't have any knowledge about it
• The templates above based on MyBB 1.6.3
• Please tell me if there is something wrong with the example application above. I'm still learning.


Screenshoot:

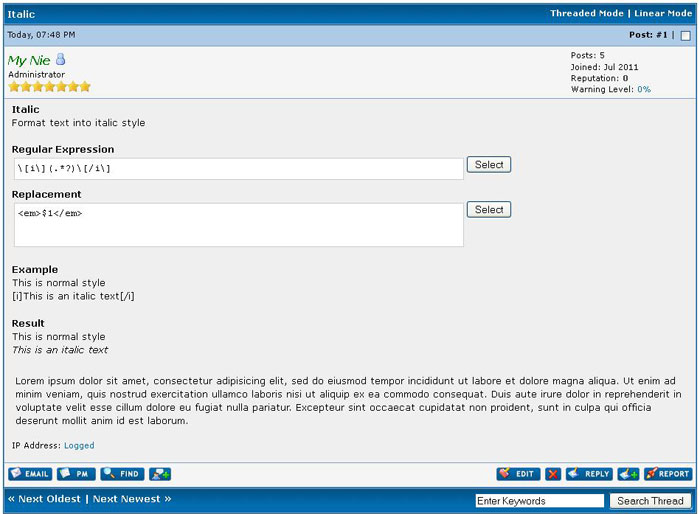

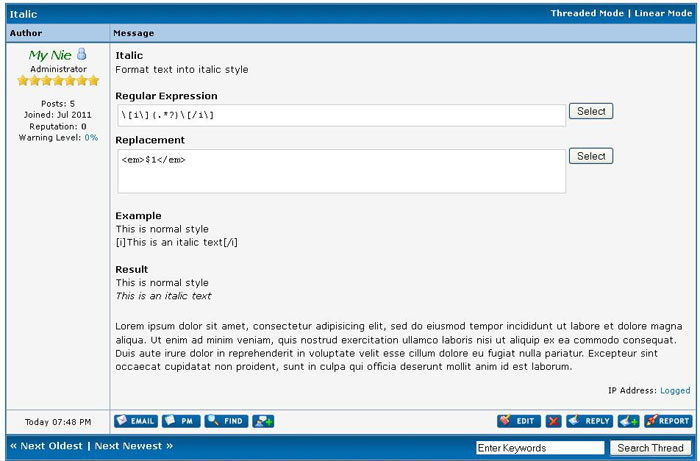

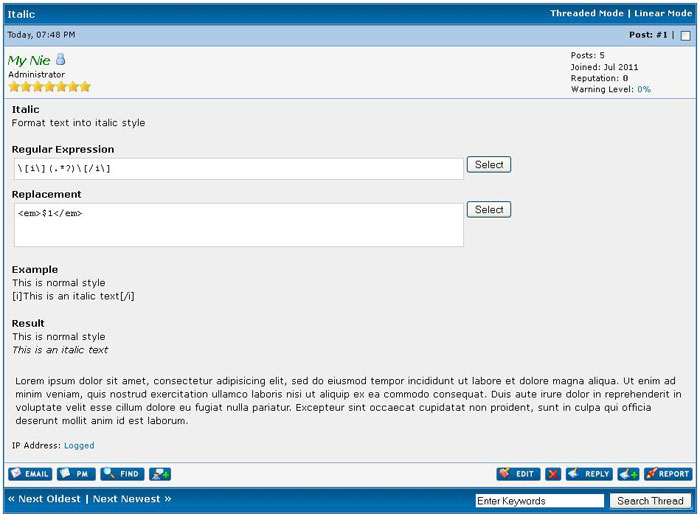

• Postbit - Postbit Classic

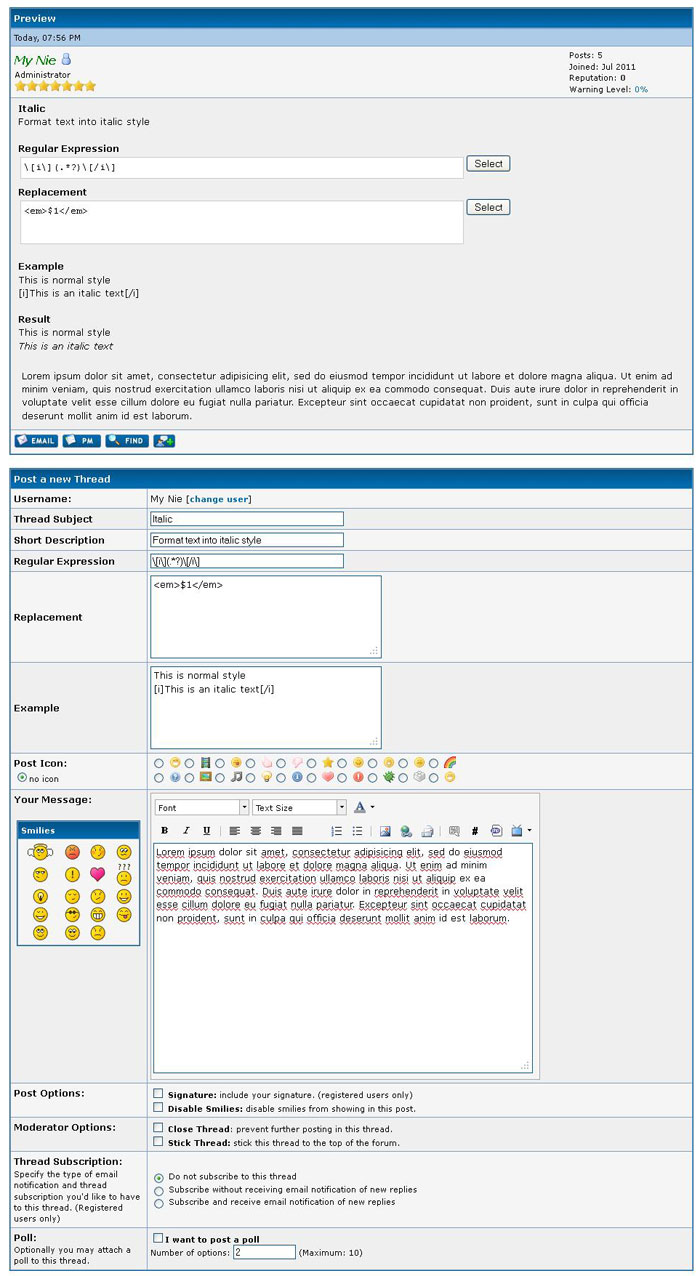

• Preview Post

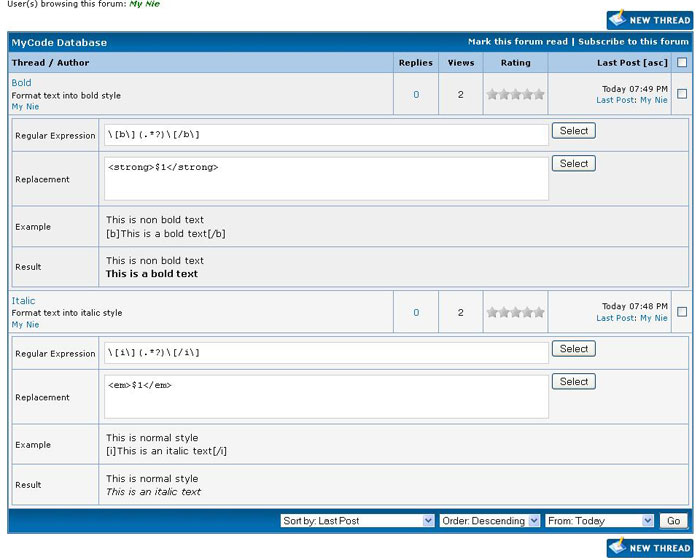

• Thread List



[leefish]

This is excellent RateU - I was thinking of redoing the pretty scruffy looking mybb code help templates, and I will have a go at editing this so that instead of seeing the regular expressions etc regular users can look up mybb Codes and use them on the forum.

[RateU]

Yeah, that was the basic idea when I try to create it. I saw it in other forum software that they have that kinds of page. They have the link to that page in their permission box (we can create it using Template Conditional plugin - I think).

[terzier]

There is it wrong?

[ZiNgA BuRgA]

You'll probably need to modify your announcements related templates (or just disable announcements for that forum).
