Computer Specs
Requirement: XThreads

This is just a very simple example for creating a Computer Specs section on our forum, based on the other XThreads example applications.
There are many fields that can be added to the Computer Specs. In this example applications, we use the basic specs only. So, modify it as our needs.

Create/edit a forum:
AdminCP -> Forums & Posts -> Forum Management:
  • Template Prefix: compspecs_
  • Language File Prefix: compspecs_
  • Show first post on every showthread page: Yes
  • Enable XThreads' Inline Forum Search: Yes
  • Allow Blank Post Message: Yes

Create a Custom Thread Fields:
AdminCP -> Configuration -> Custom Thread Fields
  1. Listbox for Type
    • Title: Type
    • Key: compspecs_type
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Listbox
    • Field Input Width: 15
    • Field Input Height: 1
    • Values List:

      Code:
      1{|}Laptop
2{|}Desktop

      Modify it as our needs

    • Editable by / Required Field?: Everyone (required)
    • Display Order: 1
    • Allow Filtering: Yes
    • Underlying Data Type: Integer (unsigned)
    • Formatting Map List:
      • Value: 1
        Displayed Output: Laptop
      • Value: 2
        Displayed Output: Desktop

      Code:
      1{|}Laptop
2{|}Desktop

      Modify it as our needs. Related to the Values List setting of this field.

    • Hide Input Field: Yes
  2. Listbox for Processor
    • Title: Processor
    • Key: compspecs_proc
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Listbox
    • Field Input Width: 10
    • Field Input Height: 1
    • Values List:

      Code:
      1{|}Intel
2{|}AMD

      Modify it as our needs

    • Editable by / Required Field?: Everyone (required)
    • Display Order: 2
    • Allow Filtering: Yes
    • Underlying Data Type: Integer (unsigned)
    • Formatting Map List:
      • Value: 1
        Displayed Output: Intel
      • Value: 2
        Displayed Output: AMD

      Code:
      1{|}Intel
2{|}AMD

      Modify it as our needs. Related to the Values List setting of this field.

    • Hide Input Field: Yes
  3. Textbox for Processor Series
    • Title: Processor Series
    • Key: compspecs_procseries
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Textbox
    • Editable by / Required Field?: Everyone (required)
    • Display Order: 3
    • Hide Input Field: Yes
  4. Textbox for Processor Frequency
    • Title: Frequency
    • Key: compspecs_procfreq
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Textbox
    • Maximum Text Length: 5
    • Field Input Width: 5
    • Editable by / Required Field?: Everyone (required)
    • Display Order: 4
    • Underlying Data Type: Float
    • Text Mask Filter: Number (real)
    • Hide Input Field: Yes
  5. Listbox for Chipsets
    • Title: Chipsets
    • Key: compspecs_chipsets
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Listbox
    • Field Input Width: 10
    • Field Input Height: 1
    • Values List:

      Code:
      1{|}Intel
2{|}AMD

      Modify it as our needs.

    • Editable by / Required Field?: Everyone (required)
    • Display Order: 5
    • Allow Filtering: Yes
    • Underlying Data Type: Integer (unsigned)
    • Formatting Map List:
      • Value: 1
        Displayed Output: Intel
      • Value: 2
        Displayed Output: AMD

      Code:
      1{|}Intel
2{|}AMD

      Modify it as our needs. Related to the Values List setting of this field.

    • Hide Input Field: Yes
  6. Textbox for Chipsets Series
    • Title: Chipsets Series
    • Key: compspecs_chipsetsseries
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Textbox
    • Editable by / Required Field?: Everyone (required)
    • Display Order: 6
    • Hide Input Field: Yes
  7. Textbox for Memory Size
    • Title: Memory Size
    • Key: compspecs_memsize
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Textbox
    • Maximum Text Length: 3
    • Maximum Text Length: 3
    • Editable by / Required Field?: Everyone (required)
    • Display Order: 7
    • Underlying Data Type: Integer (unsigned)
    • Text Mask Filter: Digits
    • Hide Input Field: Yes
  8. Textbox for Memory Frequency
    • Title: Memory Frequency
    • Key: compspecs_memfreq
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Textbox
    • Maximum Text Length: 10
    • Maximum Text Length: 10
    • Editable by / Required Field?: Everyone (required)
    • Display Order: 8
    • Display Format:

      Code:
      <?=my_number_format({VALUE})?>

    • Underlying Data Type: Integer (unsigned)
    • Text Mask Filter: Digits
    • Hide Input Field: Yes
  9. Listbox for Memory Type
    • Title: Memory Type
    • Key: compspecs_memtype
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Listbox
    • Field Input Width: 10
    • Field Input Height: 1
    • Values List:

      Code:
      1{|}DDR1
2{|}DDR2
3{|}DDR3

      Modify it as our needs

    • Editable by / Required Field?: Everyone (required)
    • Display Order: 9
    • Allow Filtering: Yes
    • Underlying Data Type: Integer (unsigned)
    • Formatting Map List:
      • Value: 1
        Displayed Output: DDR1
      • Value: 2
        Displayed Output: DDR2
      • Value: 3
        Displayed Output: DDR3

      Code:
      1{|}DDR1
2{|}DDR2
3{|}DDR3

      Modify it as our needs. Related to the Values List setting of this field.

    • Hide Input Field: Yes
  10. Listbox for Graphics
    • Title: Graphics
    • Key: compspecs_graphics
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Listbox
    • Field Input Width: 15
    • Field Input Height: 1
    • Values List:

      Code:
      1{|}NVidia
2{|}ATI Radeon

      Modify it as our needs

    • Editable by / Required Field?: Everyone (required)
    • Display Order: 10
    • Allow Filtering: Yes
    • Underlying Data Type: Integer (unsigned)
    • Formatting Map List:
      • Value: 1
        Displayed Output: NVidia
      • Value: 2
        Displayed Output: ATI Radeon

      Code:
      1{|}NVidia
2{|}ATI Radeon

      Modify it as our needs. Related to the Values List setting of this field.

    • Hide Input Field: Yes
  11. Textbox for Graphics Series
    • Title: Graphics Series
    • Key: compspecs_graphicsseries
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Textbox
    • Editable by / Required Field?: Everyone (required)
    • Display Order: 11
    • Hide Input Field: Yes
  12. Textbox for Graphics Memory
    • Title: Graphics Memory
    • Key: compspecs_graphicsmemory
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Textbox
    • Maximum Text Length: 10
    • Maximum Text Length: 10
    • Editable by / Required Field?: Everyone (required)
    • Display Order: 12
    • Display Format:

      Code:
      <if intval({VALUE}) >= 1024 then><?=intval({VALUE})/1024?> GB<else>{VALUE} MB</if>

    • Underlying Data Type: Integer (unsigned)
    • Text Mask Filter: Digits
    • Hide Input Field: Yes
  13. Textbox for Hard Drives
    • Title: Hard Drives
    • Key: compspecs_hd
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Textbox
    • Maximum Text Length: 10
    • Maximum Text Length: 10
    • Editable by / Required Field?: Everyone (required)
    • Display Order: 13
    • Display Format:

      Code:
      <if intval({VALUE}) >= 1024 then><?=intval({VALUE})/1024?> TB<else>{VALUE} GB</if>

    • Underlying Data Type: Integer (unsigned)
    • Text Mask Filter: Digits
    • Hide Input Field: Yes
  14. Textbox for RPM
    • Title: RPM
    • Key: compspecs_hdrpm
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: Textbox
    • Maximum Text Length: 10
    • Maximum Text Length: 10
    • Editable by / Required Field?: Everyone (required)
    • Display Order: 14
    • Display Format:

      Code:
      <?=my_number_format({VALUE})?>

    • Underlying Data Type: Integer (unsigned)
    • Text Mask Filter: Digits
    • Hide Input Field: Yes
  15. File for Computer Picture
    • Title: Picture
    • Key: compspecs_picture
    • Applicable Forums: select our Computer Specs forum
    • Input Field Type: File
    • Valid File Extensions: jpg|jpeg|gif|png
    • Maximum File Size: 204800
      Modify it as our needs.
    • Editable by / Required Field?: Everyone
      Modify it as our needs. Select Everyone (required) if we want to force user to upload an image.
    • Display Order: 15
    • Only Accept Image Files: Yes
    • Image Thumbnail Generation: 120x90|160x120
    • Blank Replacement Value:

      Code:
      <img src="images/no-picture.png" alt="No Picture" />

    • Display Format:

      Code:
      <if THIS_SCRIPT == 'showthread.php' then><a href="{URL}" title="Click to view the large picture" target="_blank"><img src="{URL}/thumb160x120" alt="{FILENAME}" /></a><else><img src="{URL}/thumb120x90" alt="{FILENAME}" /></if>



Now, we need to create new templates in Global Template.
Admin CP -> Templates & Style -> Templates -> Global Templates:

  1. compspecs_postbit_first

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91

    {$ignore_bit}
<a name="pid{$post['pid']}" id="pid{$post['pid']}"></a>
<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="{$post_extra_style} {$post_visibility}" id="post_{$post['pid']}">
	<tbody>
		<tr>
			<td class="tcat">
				<div class="float_left smalltext">
					{$post['postdate']}, {$post['posttime']} <span id="edited_by_{$post['pid']}">{$post['editedmsg']}</span>
				</div>
				{$post['posturl']}
			</td>
		</tr>
		<tr>
			<td class="trow1 {$unapproved_shade}">
				<table cellspacing="0" cellpadding="0" border="0" style="width: 100%;">
					<tr>
						<td class="post_avatar" width="1" style="{$post['avatar_padding']}">
							{$post['useravatar']}
						</td>
						<td class="post_author">
							<strong><span class="largetext">{$post['profilelink']}</span></strong> {$post['onlinestatus']}<br />
							<span class="smalltext">
								{$post['usertitle']}<br />
								{$post['userstars']}
								{$post['groupimage']}
							</span>
						</td>
						<td class="smalltext post_author_info" width="165">
							{$post['user_details']}
						</td>
					</tr>
				</table>
			</td>
		</tr>
		<tr>
			<td class="trow2 post_content {$unapproved_shade}">
				<div class="post_body">
					<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder">
						<tr><td class="thead" colspan="3"><strong>{$lang->compspecs_title}</strong></td></tr>
						<tr>
							<td class="trow1" rowspan="6" style="width:1px;padding:9px">
								<div style="text-align:center">{$GLOBALS['threadfields']['compspecs_picture']['value']}</div>
							</td>
							<td class="trow1">{$lang->thread_subject}</td>
							<td class="trow1">{$post['subject']}</td>
						</tr>
						<tr>
							<td class="trow2">{$lang->compspecs_type}</td>
							<td class="trow2">{$GLOBALS['threadfields']['compspecs_type']}</td>
						</tr>
						<tr>
							<td class="trow1">{$lang->compspecs_proc}</td>
							<td class="trow1">{$GLOBALS['threadfields']['compspecs_proc']} {$GLOBALS['threadfields']['compspecs_procseries']} {$GLOBALS['threadfields']['compspecs_procfreq']} {$lang->compspecs_procfreqghz}
							</td>
						</tr>
						<tr>
							<td class="trow2">{$lang->compspecs_memory}</td>
							<td class="trow2">{$GLOBALS['threadfields']['compspecs_memtype']} {$GLOBALS['threadfields']['compspecs_memsize']} {$lang->compspecs_gb} {$GLOBALS['threadfields']['compspecs_memfreq']} {$lang->compspecs_memfreq}</td>
						</tr>
						<tr>
							<td class="trow1">{$lang->compspecs_graphics}</td>
							<td class="trow1">{$GLOBALS['threadfields']['compspecs_graphics']} {$GLOBALS['threadfields']['compspecs_graphicsseries']} {$GLOBALS['threadfields']['compspecs_graphicsmemory']}
							</td>
						</tr>
						<tr>
							<td class="trow2">{$lang->compspecs_hd}</td>
							<td class="trow2">{$GLOBALS['threadfields']['compspecs_hd']} {$GLOBALS['threadfields']['compspecs_hdrpm']} {$lang->compspecs_rpm}</td>
						</tr>
						<tr><td class="trow_sep" colspan="3">{$lang->your_message}</td></tr>
						<tr><td class="trow2" colspan="3"><div class="post_body" id="pid_{$post['pid']}">{$post['message']}</div></td></tr>
					</table>
				</div>
				{$post['attachments']}
				{$post['signature']}

				<div class="post_meta" id="post_meta_{$post['pid']}">
				{$post['iplogged']}
				</div>
			</td>
		</tr>
		<tr>
			<td class="trow1 post_buttons {$unapproved_shade}">
				<div class="author_buttons float_left">
					{$post['button_email']}{$post['button_pm']}{$post['button_www']}{$post['button_find']}{$post['button_rep']}
				</div>
				<div class="post_management_buttons float_right">{$post['button_edit']}{$post['button_quickdelete']}{$post['button_quote']}{$post['button_multiquote']}{$post['button_report']}{$post['button_warn']}{$post['button_reply_pm']}{$post['button_replyall_pm']}{$post['button_forward_pm']}{$post['button_delete_pm']}
				</div>
			</td>
		</tr>
	</tbody>
</table>

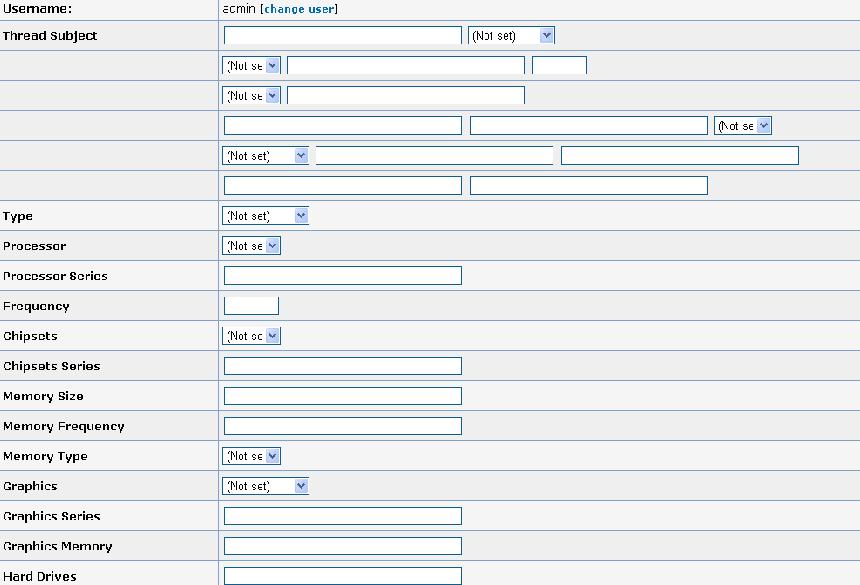

  2. compspecs_newthread

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111

    <html>
<head>
<title>{$lang->newthread_in}</title>
{$headerinclude}
<script type="text/javascript" src="jscripts/post.js?ver=1400"></script>
</head>
<body>
{$header}
{$preview}
{$thread_errors}
{$attacherror}
<form action="newthread.php?fid={$fid}&amp;processed=1" method="post" enctype="multipart/form-data" name="input">
	<input type="hidden" name="my_post_key" value="{$mybb->post_code}" />
	<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder">
		<tr>
			<td class="thead" colspan="2"><strong>{$lang->post_new_thread}</strong></td>
		</tr>
		{$loginbox}
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->thread_subject}</strong>
			</td>
			<td class="trow2">
				{$prefixselect}<input type="text" class="textbox" name="subject" size="40" maxlength="85" value="{$subject}" tabindex="1" />
				<strong>{$lang->compspecs_type}</strong> {$tfinput['compspecs_type']}
			</td>
		</tr>
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->compspecs_proc}</strong>
			</td>
			<td class="trow2">
				{$tfinput['compspecs_proc']}
				<strong>{$lang->compspecs_series}</strong> {$tfinput['compspecs_procseries']}
				<strong>{$lang->compspecs_procfreq}</strong> {$tfinput['compspecs_procfreq']} {$lang->compspecs_procfreqghz}
			</td>
		</tr>
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->compspecs_chipsets}</strong>
			</td>
			<td class="trow2">
				{$tfinput['compspecs_chipsets']}
				<strong>{$lang->compspecs_series}</strong> {$tfinput['compspecs_chipsetsseries']}
			</td>
		</tr>
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->compspecs_memory}</strong>
			</td>
			<td class="trow2">
				{$tfinput['compspecs_memsize']} {$lang->compspecs_gb}
				{$tfinput['compspecs_memfreq']} {$lang->compspecs_memfreq}
				{$tfinput['compspecs_memtype']}
			</td>
		</tr>
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->compspecs_graphics}</strong>
			</td>
			<td class="trow2">
				{$tfinput['compspecs_graphics']}
				<strong>{$lang->compspecs_series}</strong> {$tfinput['compspecs_graphicsseries']}
				{$tfinput['compspecs_graphicsmemory']} {$lang->compspecs_mb}
				<em class="smalltext">{$lang->compspecs_gbmb}</em>
			</td>
		</tr>
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->compspecs_hd}</strong>
			</td>
			<td class="trow2">
				{$tfinput['compspecs_hd']} {$lang->compspecs_gb} <em class="smalltext">{$lang->compspecs_tbgb}</em> {$tfinput['compspecs_hdrpm']} {$lang->compspecs_rpm}
			</td>
		</tr>
		{$extra_threadfields}{$posticons}
		<tr>
			<td class="trow2" valign="top"><strong>{$lang->your_message}</strong>{$smilieinserter}</td>
			<td class="trow2">
				<textarea name="message" id="message" rows="20" cols="70" tabindex="2">{$message}</textarea>
				{$codebuttons}
				{$multiquote_external}
			</td>
		</tr>
		<tr>
			<td class="trow1" valign="top"><strong>{$lang->post_options}</strong></td>
			<td class="trow1"><span class="smalltext">
				<label><input type="checkbox" class="checkbox" name="postoptions[signature]" value="1" tabindex="7"{$postoptionschecked['signature']} /> {$lang->options_sig}</label>
				{$disablesmilies}</span>
			</td>
		</tr>
		{$modoptions}
		{$subscriptionmethod}
		{$pollbox}
		{$captcha}
	</table>
	{$attachbox}
	<br />
	<div style="text-align:center"><input type="submit" class="button" name="submit" value="{$lang->post_thread}" tabindex="4" accesskey="s" />  <input type="submit" class="button" name="previewpost" value="{$lang->preview_post}" tabindex="5" />{$savedraftbutton}</div>
	<input type="hidden" name="action" value="do_newthread" />
	<input type="hidden" name="posthash" value="{$posthash}" />
	<input type="hidden" name="attachmentaid" value="" />
	<input type="hidden" name="attachmentact" value="" />
	<input type="hidden" name="quoted_ids" value="{$quoted_ids}" />
	<input type="hidden" name="tid" value="{$tid}" />
	{$editdraftpid}
</form>
{$forumrules}
{$footer}
</body>
</html>

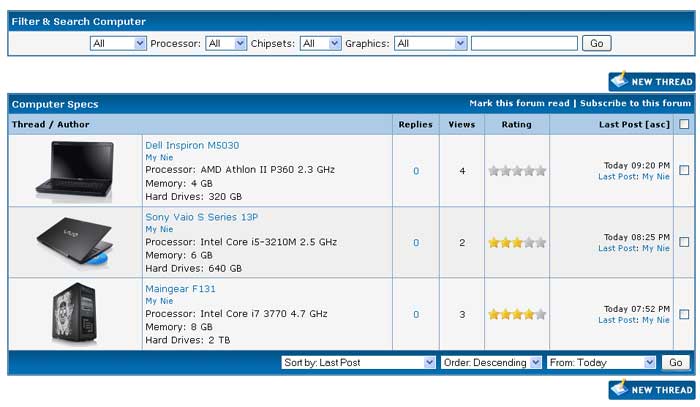

  3. compspecs_forumdisplay_threadlist

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104

    {$searchforum}
<div class="float_left">
	{$multipage}
</div>
<div class="float_right">
	{$newthread}
</div>
<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="clear: both;">
	<tr>
		<td class="thead" colspan="{$colspan}">
			<div style="float: right;">
				<span class="smalltext"><strong><a href="misc.php?action=markread&amp;fid={$fid}{$post_code_string}">{$lang->markforum_read}</a> | <a href="usercp2.php?action={$add_remove_subscription}subscription&amp;type=forum&amp;fid={$fid}&amp;my_post_key={$mybb->post_code}">{$add_remove_subscription_text}</a>{$clearstoredpass}</strong></span>
			</div>
			<div>
				<strong><a href="{$forumurl}">{$foruminfo['name']}</a></strong>
			</div>
		</td>
	</tr>
	<tr>
		<td class="tcat" colspan="3" width="66%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=subject&amp;order=asc">{$lang->thread}</a> {$orderarrow['subject']} / <a href="{$sorturl}&amp;sortby=starter&amp;order=asc">{$lang->author}</a> {$orderarrow['starter']}</strong></span></td>
		<td class="tcat" align="center" width="7%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=replies&amp;order=desc">{$lang->replies}</a> {$orderarrow['replies']}</strong></span></td>
		<td class="tcat" align="center" width="7%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=views&amp;order=desc">{$lang->views}</a> {$orderarrow['views']}</strong></span></td>
		{$ratingcol}
		<td class="tcat" align="right" width="20%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=lastpost&amp;order=desc">{$lang->lastpost}</a> {$orderarrow['lastpost']}</strong></span></td>
		{$inlinemodcol}
	</tr>
	{$selectall}
	{$announcementlist}
	{$threads}{$nullthreads}
	<tr>
		<td class="tfoot" align="right" colspan="{$colspan}">
			<form action="forumdisplay.php" method="get">
				<input type="hidden" name="selectall" value="{$allselected}" />
				<input type="hidden" name="fid" value="{$fid}" />
				<select name="sortby">
					{$sort_by_prefix}<option value="subject" {$sortsel['subject']}>{$lang->sort_by_subject}</option>
					<option value="lastpost" {$sortsel['lastpost']}>{$lang->sort_by_lastpost}</option>
					<option value="starter" {$sortsel['starter']}>{$lang->sort_by_starter}</option>
					<option value="started" {$sortsel['started']}>{$lang->sort_by_started}</option>
					{$ratingsort}
					<option value="replies" {$sortsel['replies']}>{$lang->sort_by_replies}</option>
					<option value="views" {$sortsel['views']}>{$lang->sort_by_views}</option>
					<option value="icon" {$sortsel['icon']}>{$lang->sort_by_icon}</option>
					<option value="lastposter" {$sortsel['lastposter']}>{$lang->sort_by_lastposter}</option>
					<option value="attachmentcount" {$sortsel['attachmentcount']}>{$lang->sort_by_attachmentcount}</option>
					{$xthreads_extra_sorting}
				</select>
				<select name="order">
					<option value="asc" {$ordersel['asc']}>{$lang->sort_order_asc}</option>
					<option value="desc" {$ordersel['desc']}>{$lang->sort_order_desc}</option>
				</select>
				<select name="datecut">
					<option value="1" {$datecutsel['1']}>{$lang->datelimit_1day}</option>
					<option value="5" {$datecutsel['5']}>{$lang->datelimit_5days}</option>
					<option value="10" {$datecutsel['10']}>{$lang->datelimit_10days}</option>
					<option value="20" {$datecutsel['20']}>{$lang->datelimit_20days}</option>
					<option value="50" {$datecutsel['50']}>{$lang->datelimit_50days}</option>
					<option value="75" {$datecutsel['75']}>{$lang->datelimit_75days}</option>
					<option value="100" {$datecutsel['100']}>{$lang->datelimit_100days}</option>
					<option value="365" {$datecutsel['365']}>{$lang->datelimit_lastyear}</option>
					<option value="9999" {$datecutsel['9999']}>{$lang->datelimit_beginning}</option>
				</select>
				{$gobutton}
			</form>
		</td>
	</tr>
</table>
<div class="float_left">
	{$multipage}
</div>
<div class="float_right" style="margin-top: 4px;">
	{$newthread}
</div>
<br style="clear: both;" />
<br />
<div class="float_left">
	<div class="float_left">
		<dl class="thread_legend smalltext">
			<dd><img src="{$theme['imgdir']}/newfolder.gif" alt="{$lang->new_thread}" title="{$lang->new_thread}" /> {$lang->new_thread}</dd>
			<dd><img src="{$theme['imgdir']}/newhotfolder.gif" alt="{$lang->new_hot_thread}" title="{$lang->new_hot_thread}" /> {$lang->new_hot_thread}</dd>
			<dd><img src="{$theme['imgdir']}/hotfolder.gif" alt="{$lang->hot_thread}" title="{$lang->hot_thread}" /> {$lang->hot_thread}</dd>
		</dl>
	</div>

	<div class="float_left">
		<dl class="thread_legend smalltext">
			<dd><img src="{$theme['imgdir']}/folder.gif" alt="{$lang->no_new_thread}" title="{$lang->no_new_thread}" /> {$lang->no_new_thread}</dd>
			<dd><img src="{$theme['imgdir']}/dot_folder.gif" alt="{$lang->posts_by_you}" title="{$lang->posts_by_you}" /> {$lang->posts_by_you}</dd>
			<dd><img src="{$theme['imgdir']}/lockfolder.gif" alt="{$lang->locked_thread}" title="{$lang->locked_thread}" /> {$lang->locked_thread}</dd>
		</dl>
	</div>
	<br style="clear: both" />
</div>

<div class="float_right" style="text-align: right;">
	{$inlinemod}
	{$forumjump}
</div>
<br style="clear: both" />
<div style="text-align:center" class="smalltext">
{$foruminfo['name']}<br />
Powered By: <a href="http://mybbhacks.zingaburga.com/showthread.php?tid=288" target="_blank">XThreads</a>
</div>
{$inline_edit_js}

  4. compspecs_forumdisplay_thread

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25

    <tr>
	<td align="center" class="{$bgcolor}{$thread_type_class}" colspan="2">
		{$GLOBALS['threadfields']['compspecs_picture']['value']}
	</td>
	<td class="{$bgcolor}{$thread_type_class}">
		{$attachment_count}
		<div>
			<span>{$prefix} {$gotounread}{$thread['threadprefix']}<a href="{$thread['threadlink']}" class="{$inline_edit_class} {$new_class}" id="tid_{$inline_edit_tid}">{$thread['subject']}</a>{$thread['multipage']}</span>
			<div class="author smalltext">{$thread['profilelink']}</div>
			<div>
				{$lang->compspecs_proc} {$GLOBALS['threadfields']['compspecs_proc']} {$GLOBALS['threadfields']['compspecs_procseries']} {$GLOBALS['threadfields']['compspecs_procfreq']} {$lang->compspecs_procfreqghz}<br />
				{$lang->compspecs_memory} {$GLOBALS['threadfields']['compspecs_memsize']} {$lang->compspecs_gb}<br />
				{$lang->compspecs_hd} {$GLOBALS['threadfields']['compspecs_hd']}
			</div>
		</div>
	</td>
	<td align="center" class="{$bgcolor}{$thread_type_class}"><a href="javascript:MyBB.whoPosted({$thread['tid']});">{$thread['replies']}</a>{$unapproved_posts}</td>
	<td align="center" class="{$bgcolor}{$thread_type_class}">{$thread['views']}</td>
	{$rating}
	<td class="{$bgcolor}{$thread_type_class}" style="white-space: nowrap; text-align: right;">
		<span class="lastpost smalltext">{$lastpostdate} {$lastposttime}<br />
		<a href="{$thread['lastpostlink']}">{$lang->lastpost}</a>: {$lastposterlink}</span>
	</td>
{$modbit}
</tr>

  5. compspecs_editpost_first

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121

    <html>
<head>
<title>{$mybb->settings['bbname']} - {$lang->edit_post}</title>
{$headerinclude}
<script type="text/javascript" src="jscripts/post.js?ver=1400"></script>
</head>
<body>
{$header}
{$preview}
{$post_errors}
{$attacherror}
<form action="editpost.php" method="post" name="editpost">
<input type="hidden" name="my_post_key" value="{$mybb->post_code}" />
<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder">
<tr>
<td class="thead" colspan="3"><strong>{$lang->delete_post}</strong></td>
</tr>
<tr>
<td class="trow1" style="white-space: nowrap"><input type="checkbox" class="checkbox" name="delete" value="1" tabindex="9" /> <strong>{$lang->delete_q}</strong></td>
<td class="trow1" width="100%">{$lang->delete_1}<br /><span class="smalltext">{$lang->delete_2}</span></td>
<td class="trow1"><input type="submit" class="button" name="submit" value="{$lang->delete_now}" tabindex="10" /></td>
</tr>
</table>
<input type="hidden" name="action" value="deletepost" />
<input type="hidden" name="pid" value="{$pid}" />
</form>
<br />
<form action="editpost.php?pid={$pid}&amp;processed=1" method="post" enctype="multipart/form-data" name="input">
	<input type="hidden" name="my_post_key" value="{$mybb->post_code}" />
	<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder">
		<tr>
			<td class="thead" colspan="2"><strong>{$lang->edit_post}</strong></td>
		</tr>
		{$loginbox}
		<tr>
			<td class="trow2">
				<strong>{$lang->thread_subject}</strong>
			</td>
			<td class="trow2">
				{$prefixselect}<input type="text" class="textbox" name="subject" size="40" maxlength="85" value="{$subject}" tabindex="1" />
				<strong>{$lang->compspecs_type}</strong> {$tfinput['compspecs_type']}
			</td>
		</tr>
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->compspecs_proc}</strong>
			</td>
			<td class="trow2">
				{$tfinput['compspecs_proc']}
				<strong>{$lang->compspecs_series}</strong> {$tfinput['compspecs_procseries']}
				<strong>{$lang->compspecs_procfreq}</strong> {$tfinput['compspecs_procfreq']} {$lang->compspecs_procfreqghz}
			</td>
		</tr>
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->compspecs_chipsets}</strong>
			</td>
			<td class="trow2">
				{$tfinput['compspecs_chipsets']}
				<strong>{$lang->compspecs_series}</strong> {$tfinput['compspecs_chipsetsseries']}
			</td>
		</tr>
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->compspecs_memory}</strong>
			</td>
			<td class="trow2">
				{$tfinput['compspecs_memsize']} {$lang->compspecs_gb}
				{$tfinput['compspecs_memfreq']} {$lang->compspecs_memfreq}
				{$tfinput['compspecs_memtype']}
			</td>
		</tr>
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->compspecs_graphics}</strong>
			</td>
			<td class="trow2">
				{$tfinput['compspecs_graphics']}
				<strong>{$lang->compspecs_series}</strong> {$tfinput['compspecs_graphicsseries']}
				{$tfinput['compspecs_graphicsmemory']} {$lang->compspecs_mb}
				<em class="smalltext">{$lang->compspecs_gbmb}</em>
			</td>
		</tr>
		<tr>
			<td class="trow2" width="20%">
				<strong>{$lang->compspecs_hd}</strong>
			</td>
			<td class="trow2">
				{$tfinput['compspecs_hd']} {$lang->compspecs_gb} <em class="smalltext">{$lang->compspecs_tbgb}</em> {$tfinput['compspecs_hdrpm']} {$lang->compspecs_rpm}
			</td>
		</tr>
		{$extra_threadfields}{$posticons}
		<tr>
			<td class="trow2" valign="top"><strong>{$lang->your_message}:</strong><br /><div style="text-align: center;">{$smilieinserter}</div></td>
			<td class="trow2">
				<textarea name="message" id="message" rows="20" cols="70" tabindex="3">{$message}</textarea>
				{$codebuttons}
			</td>
		</tr>
		<tr>
			<td class="trow1" valign="top"><strong>{$lang->post_options}</strong></td>
			<td class="trow1"><span class="smalltext">
				<label><input type="checkbox" class="checkbox" name="postoptions[signature]" value="1" tabindex="6"{$postoptionschecked['signature']} /> {$lang->options_sig}</label>
				{$disablesmilies}</span>
			</td>
		</tr>
		{$subscriptionmethod}
		{$pollbox}
	</table>
	{$attachbox}
	<br />
	<div align="center"><input type="submit" class="button" name="submit" value="{$lang->update_post}" tabindex="3" accesskey="s" />  <input type="submit" class="button" name="previewpost" value="{$lang->preview_post}" tabindex="4" /></div>
	<input type="hidden" name="action" value="do_editpost" />
	<input type="hidden" name="posthash" value="{$posthash}" />
	{$tfinput['xtra_tid']}{$tfinput['xtra_pid']}{$tfinput['xtra_aid']}
	<input type="hidden" name="attachmentaid" value="" />
	<input type="hidden" name="attachmentact" value="" />
</form>
{$footer}
</body>
</html>

  6. compspecs_forumdisplay_searchforum_inline

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42

    <br class="clear" />
<table border="0" cellspacing="{$GLOBALS['theme']['borderwidth']}" cellpadding="{$GLOBALS['theme']['tablespace']}" class="tborder">
	<tr>
	<td class="thead"><strong>{$lang->compspecs_search}</strong></td>
	</tr>
	<tr>
		<td class="trow1" style="text-align: center">
			<form action="forumdisplay.php" method="get">
				{$xthreads_forum_filter_form}
				<select name="filtertf_compspecs_type">
					<option value="">All</option>
					<option value="1"{$GLOBALS['filters_set']['compspecs_type']['selected'][1]}>Laptop</option>
					<option value="2"{$GLOBALS['filters_set']['compspecs_type']['selected'][2]}>Desktop</option>
				</select>
				{$lang->compspecs_proc}
				<select name="filtertf_compspecs_proc">
					<option value="">All</option>
					<option value="1"{$GLOBALS['filters_set']['compspecs_proc']['selected'][1]}>Intel</option>
					<option value="2"{$GLOBALS['filters_set']['compspecs_proc']['selected'][2]}>AMD</option>
				</select>
				{$lang->compspecs_chipsets}
				<select name="filtertf_compspecs_chipsets">
					<option value="">All</option>
					<option value="1"{$GLOBALS['filters_set']['compspecs_chipsets']['selected'][1]}>Intel</option>
					<option value="2"{$GLOBALS['filters_set']['compspecs_chipsets']['selected'][2]}>AMD</option>
				</select>
				{$lang->compspecs_graphics}
				<select name="filtertf_compspecs_graphics">
					<option value="">All</option>
					<option value="1"{$GLOBALS['filters_set']['compspecs_graphics']['selected'][1]}>NVidia</option>
					<option value="2"{$GLOBALS['filters_set']['compspecs_graphics']['selected'][2]}>ATI Radeon</option>
				</select>
				<input type="text" class="textbox" name="search" value="{$searchval}" /> {$gobutton}
				<input type="hidden" name="fid" value="{$fid}" />
				<input type="hidden" name="sortby" value="{$sortby}" />
				<input type="hidden" name="order" value="{$sortordernow}" />
				<input type="hidden" name="datecut" value="{$datecut}" />
			</form>
		</td>
	</tr>
</table>
<br />

  7. compspecs_postbit_first_classic

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74

    {$ignore_bit}
<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="{$post_extra_style} {$post_visibility}" id="post_{$post['pid']}">
	<tr>
		<td class="{$altbg}" width="15%" valign="top" style="white-space: nowrap; text-align: center;"><a name="pid{$post['pid']}" id="pid{$post['pid']}"></a>
		<strong><span class="largetext">{$post['profilelink']}</span></strong> {$post['onlinestatus']}<br />
		<span class="smalltext">
			{$post['usertitle']}<br />
			{$post['userstars']}
			{$post['groupimage']}
			{$post['useravatar']}<br />
			{$post['user_details']}
		</span>
	</td>
	<td class="{$altbg}" valign="top">
		<table width="100%">
			<tr><td>
			<div class="post_body">
				<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder">
					<tr><td class="thead" colspan="3">{$post['posturl']}<strong>{$lang->compspecs_title}</strong></td></tr>
					<tr>
						<td class="trow1" rowspan="6" style="width:1px;padding:9px">
							<div style="text-align:center">{$GLOBALS['threadfields']['compspecs_picture']['value']}</div>
						</td>
						<td class="trow1">{$lang->thread_subject}</td>
						<td class="trow1">{$post['subject']}</td>
					</tr>
					<tr>
						<td class="trow2">{$lang->compspecs_type}</td>
						<td class="trow2">{$GLOBALS['threadfields']['compspecs_type']}</td>
					</tr>
					<tr>
						<td class="trow1">{$lang->compspecs_proc}</td>
						<td class="trow1">{$GLOBALS['threadfields']['compspecs_proc']} {$GLOBALS['threadfields']['compspecs_procseries']} {$GLOBALS['threadfields']['compspecs_procfreq']} {$lang->compspecs_procfreqghz}
						</td>
					</tr>
					<tr>
						<td class="trow2">{$lang->compspecs_memory}</td>
						<td class="trow2">{$GLOBALS['threadfields']['compspecs_memtype']} {$GLOBALS['threadfields']['compspecs_memsize']} {$lang->compspecs_gb} {$GLOBALS['threadfields']['compspecs_memfreq']} {$lang->compspecs_memfreq}</td>
					</tr>
					<tr>
						<td class="trow1">{$lang->compspecs_graphics}</td>
						<td class="trow1">{$GLOBALS['threadfields']['compspecs_graphics']} {$GLOBALS['threadfields']['compspecs_graphicsseries']} {$GLOBALS['threadfields']['compspecs_graphicsmemory']}
						</td>
					</tr>
					<tr>
						<td class="trow2">{$lang->compspecs_hd}</td>
						<td class="trow2">{$GLOBALS['threadfields']['compspecs_hd']} {$GLOBALS['threadfields']['compspecs_hdrpm']} {$lang->compspecs_rpm}</td>
					</tr>
					<tr><td class="trow_sep" colspan="3">{$lang->your_message}</td></tr>
					<tr><td class="trow2" colspan="3"><div class="post_body" id="pid_{$post['pid']}">{$post['message']}</div></td></tr>
				</table>
			</div>
			{$post['attachments']}
			{$post['signature']}
			<div style="text-align: right; vertical-align: bottom;" id="post_meta_{$post['pid']}">
				<div id="edited_by_{$post['pid']}">{$post['editedmsg']}</div>
				{$post['iplogged']}
			</div>
		</td></tr>
	</table>
</td>
</tr>
<tr>
	<td class="{$altbg}" style="white-space: nowrap; text-align: center; vertical-align: middle;"><span class="smalltext">{$post['postdate']} {$post['posttime']}</span></td>
	<td class="{$altbg}" style="vertical-align: middle;">
		<table width="100%" border="0" cellpadding="0" cellspacing="0">
			<tr valign="bottom">
				<td align="left" ><span class="smalltext">{$post['button_email']}{$post['button_pm']}{$post['button_www']}{$post['button_find']}{$post['button_rep']}</span></td>
				<td align="right">{$post['button_edit']}{$post['button_quickdelete']}{$post['button_quote']}{$post['button_multiquote']}{$post['button_report']}{$post['button_warn']}{$post['button_reply_pm']}{$post['button_replyall_pm']}{$post['button_forward_pm']}{$post['button_delete_pm']}</td>
			</tr>
		</table>
	</td>
</tr>
</table>



Additional Info:
  1. We use language prefix for this (attached). Upload it to our inc/languages/english folder.
  2. The templates above based on MyBB 1.6.8 templates.

That's the basic. Just modify it as our needs.
Please tell me if there is something wrong with the code above. I'm still learning.

Screenshots:

1. Newthread / Editpost:


2. Thread List:

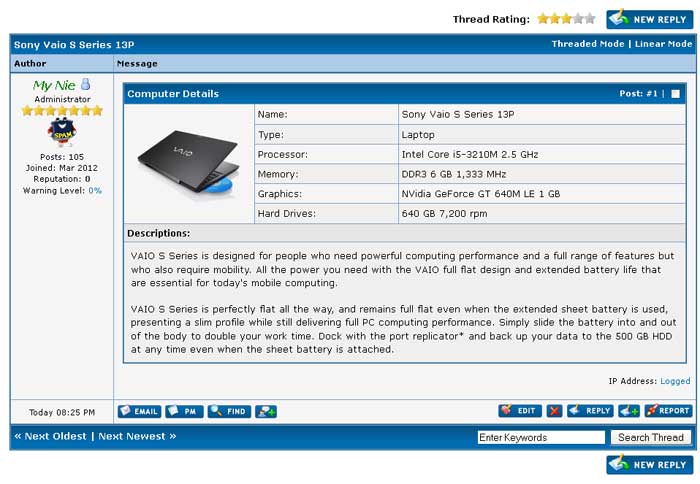

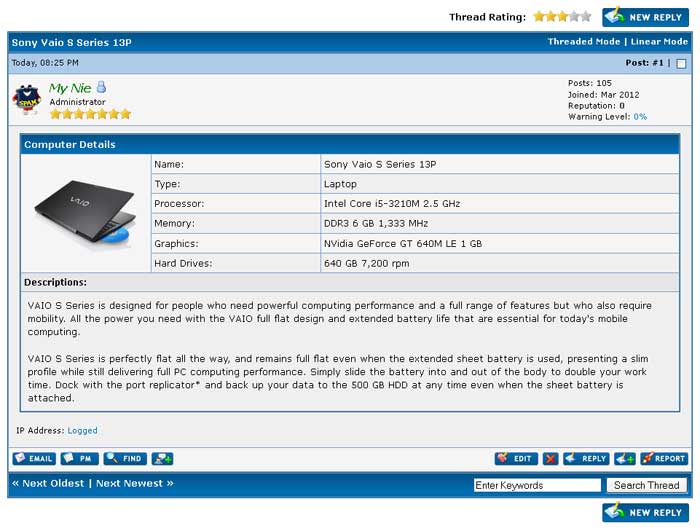

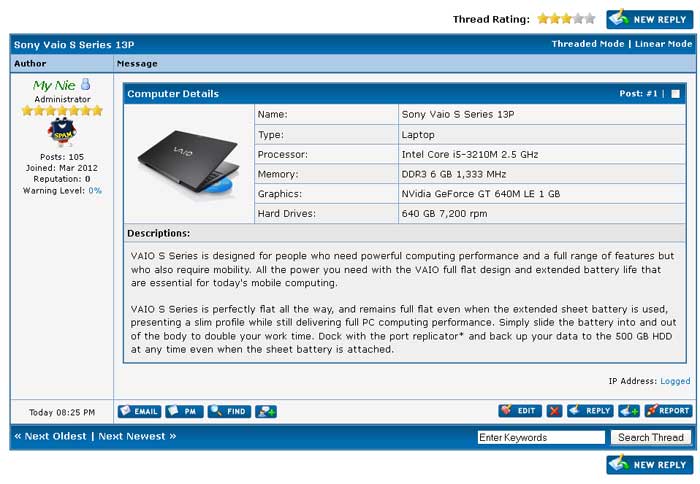

3. Showthread:



Attached File(s)
.7z  compspecs.7z (Size: 990 bytes / Downloads: 740)
07-30-2012 10:58 AM
Find all posts by this user Quote this message in a reply
RateU Offline
Administrator
*******
Posts: 2,350
Joined: Mar 2010
Post: #2
RE: Computer Specs
Additional 'Features':
Only if we use Template Conditional or PHP in Templates / Complex Templates plugin.

Because the Underlying Data Type of some custom thread fields is numeric, so we will try to filter it using the extended operands.
  • Edit compspecs_procfreq, compspecs_memsize, compspecs_graphicsmemory and compspecs_hd thread fields.
    Set the Filtering Mode to Exact match.

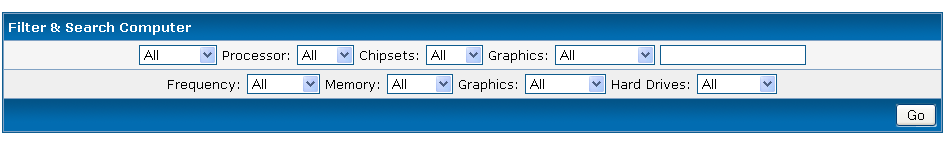

  • Edit compspecs_forumdisplay_searchforum_inline template. Delete all codes inside the template.
  • Edit the compspecs_forumdisplay_threadlist template.

    HTML Code
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121
    122
    123
    124
    125
    126
    127
    128
    129
    130
    131
    132
    133
    134
    135
    136
    137
    138
    139
    140
    141
    142
    143
    144
    145
    146
    147
    148
    149
    150
    151
    152
    153
    154
    155
    156
    157
    158
    159
    160
    161
    162
    163
    164
    165
    166
    167
    168
    169
    170
    171
    172
    173
    174
    175
    176
    177
    178
    179
    180
    181
    182
    183
    184
    185
    186
    187
    188

    {$searchforum}
<setvar fset_freq>array(1=>$GLOBALS['filters_set']['compspecs_procfreq']['selected']['>1'],2=>$GLOBALS['filters_set']['compspecs_procfreq']['selected']['>2'],3=>$GLOBALS['filters_set']['compspecs_procfreq']['selected']['>3'],4=>$GLOBALS['filters_set']['compspecs_procfreq']['selected']['>4'])</setvar>
<setvar fset_memsize>array(1=>$GLOBALS['filters_set']['compspecs_memsize']['selected']['>1'],2=>$GLOBALS['filters_set']['compspecs_memsize']['selected']['>2'],3=>$GLOBALS['filters_set']['compspecs_memsize']['selected']['>4'],4=>$GLOBALS['filters_set']['compspecs_memsize']['selected']['>8'])</setvar>
<setvar fset_graphicsmemory>array(1=>$GLOBALS['filters_set']['compspecs_graphicsmemory']['selected']['>512'],2=>$GLOBALS['filters_set']['compspecs_graphicsmemory']['selected']['>1024'],3=>$GLOBALS['filters_set']['compspecs_graphicsmemory']['selected']['>2048'])</setvar>
<setvar fset_hd>array(1=>$GLOBALS['filters_set']['compspecs_hd']['selected']['>250'],2=>$GLOBALS['filters_set']['compspecs_hd']['selected']['>500'],3=>$GLOBALS['filters_set']['compspecs_hd']['selected']['>750'],4=>$GLOBALS['filters_set']['compspecs_hd']['selected']['>1024'])</setvar>
<br class="clear" />
<form action="forumdisplay.php" method="get">
	{$xthreads_forum_filter_form}
	<table border="0" cellspacing="{$GLOBALS['theme']['borderwidth']}" cellpadding="{$GLOBALS['theme']['tablespace']}" class="tborder">
		<tr><td class="thead"><strong>{$lang->compspecs_search}</strong></td></tr>
		<tr>
			<td class="trow1" style="text-align: center">
				<select name="filtertf_compspecs_type">
					<option value="">All</option>
					<option value="1"{$GLOBALS['filters_set']['compspecs_type']['selected'][1]}>Laptop</option>
					<option value="2"{$GLOBALS['filters_set']['compspecs_type']['selected'][2]}>Desktop</option>
				</select>
				{$lang->compspecs_proc}
				<select name="filtertf_compspecs_proc">
					<option value="">All</option>
					<option value="1"{$GLOBALS['filters_set']['compspecs_proc']['selected'][1]}>Intel</option>
					<option value="2"{$GLOBALS['filters_set']['compspecs_proc']['selected'][2]}>AMD</option>
				</select>
				{$lang->compspecs_chipsets}
				<select name="filtertf_compspecs_chipsets">
					<option value="">All</option>
					<option value="1"{$GLOBALS['filters_set']['compspecs_chipsets']['selected'][1]}>Intel</option>
					<option value="2"{$GLOBALS['filters_set']['compspecs_chipsets']['selected'][2]}>AMD</option>
				</select>
				{$lang->compspecs_graphics}
				<select name="filtertf_compspecs_graphics">
					<option value="">All</option>
					<option value="1"{$GLOBALS['filters_set']['compspecs_graphics']['selected'][1]}>NVidia</option>
					<option value="2"{$GLOBALS['filters_set']['compspecs_graphics']['selected'][2]}>ATI Radeon</option>
				</select>
				<input type="text" class="textbox" name="search" value="<func htmlspecialchars_uni>{$mybb->input['search']}</func>" />
			</td>
		</tr>
		<tr>
			<td class="trow2" style="text-align: center">
				{$lang->compspecs_procfreq}
				<select name="filtertf_compspecs_procfreq">
					<option value="">All</option>
					<option value=">1"{$GLOBALS['tplvars']['fset_freq'][1]}>&gt; 1 {$lang->compspecs_procfreqghz}</option>
					<option value=">2"{$GLOBALS['tplvars']['fset_freq'][2]}>&gt; 2 {$lang->compspecs_procfreqghz}</option>
					<option value=">3"{$GLOBALS['tplvars']['fset_freq'][3]}>&gt; 3 {$lang->compspecs_procfreqghz}</option>
					<option value=">4"{$GLOBALS['tplvars']['fset_freq'][4]}>&gt; 4 {$lang->compspecs_procfreqghz}</option>
				</select>
				{$lang->compspecs_memory}
				<select name="filtertf_compspecs_memsize">
					<option value="">All</option>
					<option value=">1"{$GLOBALS['tplvars']['fset_memsize'][1]}>&gt; 1 {$lang->compspecs_gb}</option>
					<option value=">2"{$GLOBALS['tplvars']['fset_memsize'][2]}>&gt; 2 {$lang->compspecs_gb}</option>
					<option value=">4"{$GLOBALS['tplvars']['fset_memsize'][3]}>&gt; 4 {$lang->compspecs_gb}</option>
					<option value=">8"{$GLOBALS['tplvars']['fset_memsize'][4]}>&gt; 8 {$lang->compspecs_gb}</option>
				</select>
				{$lang->compspecs_graphics}
				<select name="filtertf_compspecs_graphicsmemory">
					<option value="">All</option>
					<option value=">512"{$GLOBALS['tplvars']['fset_graphicsmemory'][1]}>&gt; 512 {$lang->compspecs_mb}</option>
					<option value=">1024"{$GLOBALS['tplvars']['fset_graphicsmemory'][2]}>&gt; 1 {$lang->compspecs_gb}</option>
					<option value=">2048"{$GLOBALS['tplvars']['fset_graphicsmemory'][3]}>&gt; 2 {$lang->compspecs_gb}</option>
				</select>
				{$lang->compspecs_hd}
				<select name="filtertf_compspecs_hd">
					<option value="">All</option>
					<option value=">250"{$GLOBALS['tplvars']['fset_hd'][1]}>&gt; 250 {$lang->compspecs_gb}</option>
					<option value=">500"{$GLOBALS['tplvars']['fset_hd'][2]}>&gt; 500 {$lang->compspecs_gb}</option>
					<option value=">750"{$GLOBALS['tplvars']['fset_hd'][3]}>&gt; 750 {$lang->compspecs_gb}</option>
					<option value=">1024"{$GLOBALS['tplvars']['fset_hd'][4]}>&gt; 1 TB</option>
				</select>
			</td>
		</tr>
		<tr>
			<td class="tfoot" style="text-align:right">
				{$gobutton}
				<input type="hidden" name="fid" value="{$fid}" />
				<input type="hidden" name="sortby" value="{$sortby}" />
				<input type="hidden" name="order" value="{$sortordernow}" />
				<input type="hidden" name="datecut" value="{$datecut}" />
			</td>
		</tr>
	</table>
</form>
<br class="clear" />
<div class="float_left">
	{$multipage}
</div>
<div class="float_right">
	{$newthread}
</div>
<table border="0" cellspacing="{$theme['borderwidth']}" cellpadding="{$theme['tablespace']}" class="tborder" style="clear: both;">
	<tr>
		<td class="thead" colspan="{$colspan}">
			<div style="float: right;">
				<span class="smalltext"><strong><a href="misc.php?action=markread&amp;fid={$fid}{$post_code_string}">{$lang->markforum_read}</a> | <a href="usercp2.php?action={$add_remove_subscription}subscription&amp;type=forum&amp;fid={$fid}&amp;my_post_key={$mybb->post_code}">{$add_remove_subscription_text}</a>{$clearstoredpass}</strong></span>
			</div>
			<div>
				<strong><a href="{$forumurl}">{$foruminfo['name']}</a></strong>
			</div>
		</td>
	</tr>
	<tr>
		<td class="tcat" colspan="3" width="66%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=subject&amp;order=asc">{$lang->thread}</a> {$orderarrow['subject']} / <a href="{$sorturl}&amp;sortby=starter&amp;order=asc">{$lang->author}</a> {$orderarrow['starter']}</strong></span></td>
		<td class="tcat" align="center" width="7%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=replies&amp;order=desc">{$lang->replies}</a> {$orderarrow['replies']}</strong></span></td>
		<td class="tcat" align="center" width="7%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=views&amp;order=desc">{$lang->views}</a> {$orderarrow['views']}</strong></span></td>
		{$ratingcol}
		<td class="tcat" align="right" width="20%"><span class="smalltext"><strong><a href="{$sorturl}&amp;sortby=lastpost&amp;order=desc">{$lang->lastpost}</a> {$orderarrow['lastpost']}</strong></span></td>
		{$inlinemodcol}
	</tr>
	{$selectall}
	{$announcementlist}
	{$threads}{$nullthreads}
	<tr>
		<td class="tfoot" align="right" colspan="{$colspan}">
			<form action="forumdisplay.php" method="get">
				<input type="hidden" name="selectall" value="{$allselected}" />
				<input type="hidden" name="fid" value="{$fid}" />
				<select name="sortby">
					{$sort_by_prefix}<option value="subject" {$sortsel['subject']}>{$lang->sort_by_subject}</option>
					<option value="lastpost" {$sortsel['lastpost']}>{$lang->sort_by_lastpost}</option>
					<option value="starter" {$sortsel['starter']}>{$lang->sort_by_starter}</option>
					<option value="started" {$sortsel['started']}>{$lang->sort_by_started}</option>
					{$ratingsort}
					<option value="replies" {$sortsel['replies']}>{$lang->sort_by_replies}</option>
					<option value="views" {$sortsel['views']}>{$lang->sort_by_views}</option>
					<option value="icon" {$sortsel['icon']}>{$lang->sort_by_icon}</option>
					<option value="lastposter" {$sortsel['lastposter']}>{$lang->sort_by_lastposter}</option>
					<option value="attachmentcount" {$sortsel['attachmentcount']}>{$lang->sort_by_attachmentcount}</option>
					{$xthreads_extra_sorting}
				</select>
				<select name="order">
					<option value="asc" {$ordersel['asc']}>{$lang->sort_order_asc}</option>
					<option value="desc" {$ordersel['desc']}>{$lang->sort_order_desc}</option>
				</select>
				<select name="datecut">
					<option value="1" {$datecutsel['1']}>{$lang->datelimit_1day}</option>
					<option value="5" {$datecutsel['5']}>{$lang->datelimit_5days}</option>
					<option value="10" {$datecutsel['10']}>{$lang->datelimit_10days}</option>
					<option value="20" {$datecutsel['20']}>{$lang->datelimit_20days}</option>
					<option value="50" {$datecutsel['50']}>{$lang->datelimit_50days}</option>
					<option value="75" {$datecutsel['75']}>{$lang->datelimit_75days}</option>
					<option value="100" {$datecutsel['100']}>{$lang->datelimit_100days}</option>
					<option value="365" {$datecutsel['365']}>{$lang->datelimit_lastyear}</option>
					<option value="9999" {$datecutsel['9999']}>{$lang->datelimit_beginning}</option>
				</select>
				{$gobutton}
			</form>
		</td>
	</tr>
</table>
<div class="float_left">
	{$multipage}
</div>
<div class="float_right" style="margin-top: 4px;">
	{$newthread}
</div>
<br style="clear: both;" />
<br />
<div class="float_left">
	<div class="float_left">
		<dl class="thread_legend smalltext">
			<dd><img src="{$theme['imgdir']}/newfolder.gif" alt="{$lang->new_thread}" title="{$lang->new_thread}" /> {$lang->new_thread}</dd>
			<dd><img src="{$theme['imgdir']}/newhotfolder.gif" alt="{$lang->new_hot_thread}" title="{$lang->new_hot_thread}" /> {$lang->new_hot_thread}</dd>
			<dd><img src="{$theme['imgdir']}/hotfolder.gif" alt="{$lang->hot_thread}" title="{$lang->hot_thread}" /> {$lang->hot_thread}</dd>
		</dl>
	</div>

	<div class="float_left">
		<dl class="thread_legend smalltext">
			<dd><img src="{$theme['imgdir']}/folder.gif" alt="{$lang->no_new_thread}" title="{$lang->no_new_thread}" /> {$lang->no_new_thread}</dd>
			<dd><img src="{$theme['imgdir']}/dot_folder.gif" alt="{$lang->posts_by_you}" title="{$lang->posts_by_you}" /> {$lang->posts_by_you}</dd>
			<dd><img src="{$theme['imgdir']}/lockfolder.gif" alt="{$lang->locked_thread}" title="{$lang->locked_thread}" /> {$lang->locked_thread}</dd>
		</dl>
	</div>
	<br style="clear: both" />
</div>

<div class="float_right" style="text-align: right;">
	{$inlinemod}
	{$forumjump}
</div>
<br style="clear: both" />
<div style="text-align:center" class="smalltext">
{$foruminfo['name']}<br />
Powered By: <a href="http://mybbhacks.zingaburga.com/showthread.php?tid=288" target="_blank">XThreads</a>
</div>
{$inline_edit_js}

    Basically, we move the search forum inline to this template (I can't make the template conditional works inside the compspecs_forumdisplay_searchforum_inline).

Now, we can use more criteria in the search forum feature, for example, computer that has HD more than 1 TB, RAM more than 2 GB and etc.

Modify it as our needs.


12-21-2012 05:58 AM
Find all posts by this user Quote this message in a reply
admin2u Offline
Junior Member
**
Posts: 14
Joined: Oct 2012
Post: #3
RE: Computer Specs
why it like these????


12-25-2012 07:33 AM
Find all posts by this user Quote this message in a reply
RateU Offline
Administrator
*******
Posts: 2,350
Joined: Mar 2010
Post: #4
RE: Computer Specs
Please make sure that the Hide Thread Field is checked.
12-26-2012 02:31 AM
Find all posts by this user Quote this message in a reply
admin2u Offline
Junior Member
**
Posts: 14
Joined: Oct 2012
Post: #5
RE: Computer Specs
(12-26-2012 02:31 AM)RateU Wrote:  Please make sure that the Hide Thread Field is checked.

still missing discription see the X that i mark BiggrinBiggrinBiggrin


12-26-2012 06:35 AM
Find all posts by this user Quote this message in a reply
RateU Offline
Administrator
*******
Posts: 2,350
Joined: Mar 2010
Post: #6
RE: Computer Specs
Did you upload the language files to your languages dir?
(This post was last modified: 12-26-2012 06:42 AM by RateU.)
12-26-2012 06:42 AM
Find all posts by this user Quote this message in a reply
admin2u Offline
Junior Member
**
Posts: 14
Joined: Oct 2012
Post: #7
RE: Computer Specs
(12-26-2012 06:42 AM)RateU Wrote:  Did you upload the language files to your languages dir?

thanks perfect for me

thanks so much...now begin to Additional 'Features':

all work perfect thanks Biggrin
(This post was last modified: 12-26-2012 12:35 PM by admin2u.)
12-26-2012 07:00 AM
Find all posts by this user Quote this message in a reply
Altered Offline
Junior Member
**
Posts: 4
Joined: Dec 2013
Post: #8
RE: Computer Specs
I wanted to say this has been a great addition to our gaming clans website. Biggrin Thank you very much. It can be seen here http://www.afksite.com

I am not very good with coding, actually I am learning slowly. I was wondering what it would take to create a shortcut so to speak that opened a drop down, in the area below the avatar, of each members pc specs. I have seen this on other forums but nothing for mybb. I didn't know if this would be a massive undertaking or quite simple once the member had created his information with Computer Specs. Any ideas?
(This post was last modified: 01-02-2014 12:33 PM by Altered.)
01-02-2014 12:30 PM
Find all posts by this user Quote this message in a reply
ZiNgA BuRgA Offline
Fag
*******
Posts: 3,357
Joined: Jan 2008
Post: #9
RE: Computer Specs
^ You may want to be aware that these are actually threads, and not really tied to a user.
You probably want something where the user specifies their computer specs in their profile or similar.
My Blog
01-03-2014 08:58 PM
Find all posts by this user Quote this message in a reply
Altered Offline
Junior Member
**
Posts: 4
Joined: Dec 2013
Post: #10
RE: Computer Specs
(01-03-2014 08:58 PM)ZiNgA BuRgA Wrote:  ^ You may want to be aware that these are actually threads, and not really tied to a user.
You probably want something where the user specifies their computer specs in their profile or similar.

Yeah I understand these are actually threads. I being a rookie was not sure if it could somehow take the original post top display portion to tie in to the creator of that posters profile.

You guys are way ahead of me so Ill take your advise and say it probably would be better to look at something where the user specifies their computer specs in their profile.

Thank you for the reply. Biggrin
01-06-2014 03:00 AM
Find all posts by this user Quote this message in a reply

« Next Oldest | Next Newest »

Threaded Mode | Linear Mode
 Standard Tools
Forum Jump:



Contact Us | MyBB Hacks | Return to Top | Return to Content | Lite (Archive) Mode | RSS Syndication
